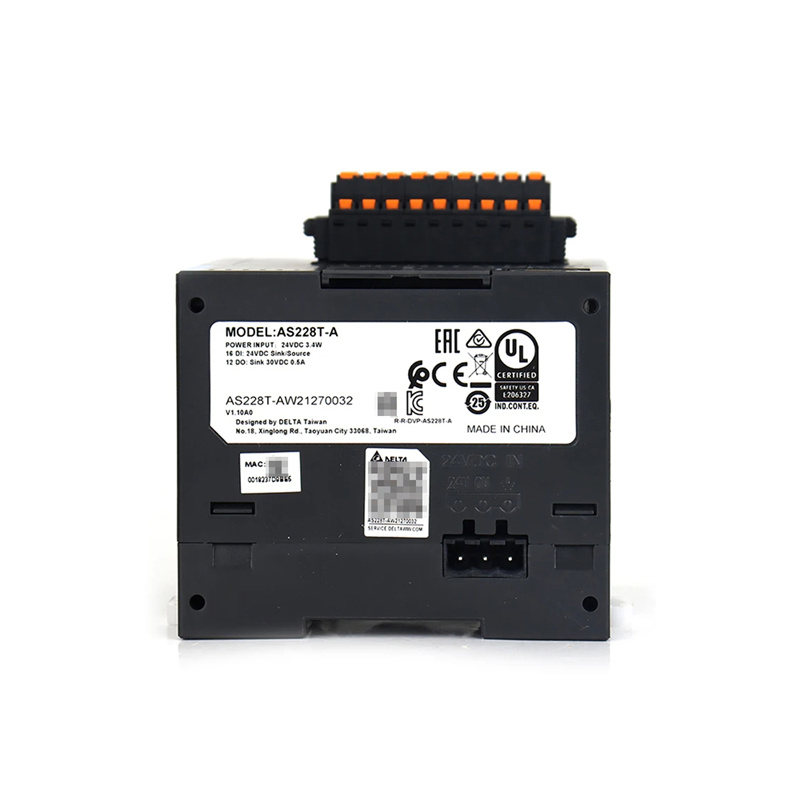

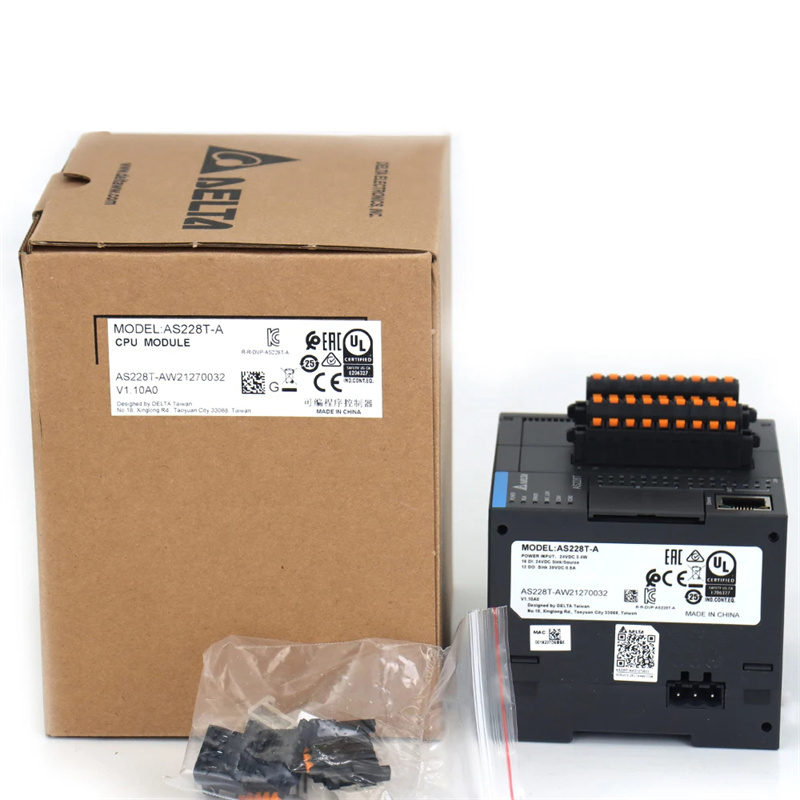

Delta AS228T-A Programming Controller AS200 Series Plc 28-point CPU Host
Features & Benefits
New 32-bit SoC (System on Chip) CPU to enhance execution speed（40 k steps / ms）
Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement
ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning
Specifications
New 32-bit SoC (System on Chip) CPU
Max. I/O: 1,024
Program capacity: AS300 series 128k steps, AS200 series 64k steps
Data registers: 60k words
Extension modules: max.32 (analog modules:max.16/ communication modules: max. 4)
Execution speed: up to 40 k steps / ms
- Basic instruction (LD): 25 ns
- Application instruction (MOV): 0.15 μs
Abundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards.
Description
| Power Supply (V) | 24V DC |
| PLC Module Type | CPU |
| Output Method | Transistor (NPN) |
| Digital Input (points) | 16 |
| Digital Output (points) | 12 |
| RS485 | True |
| Ethernet | True |
| EtherNet/IP | True |

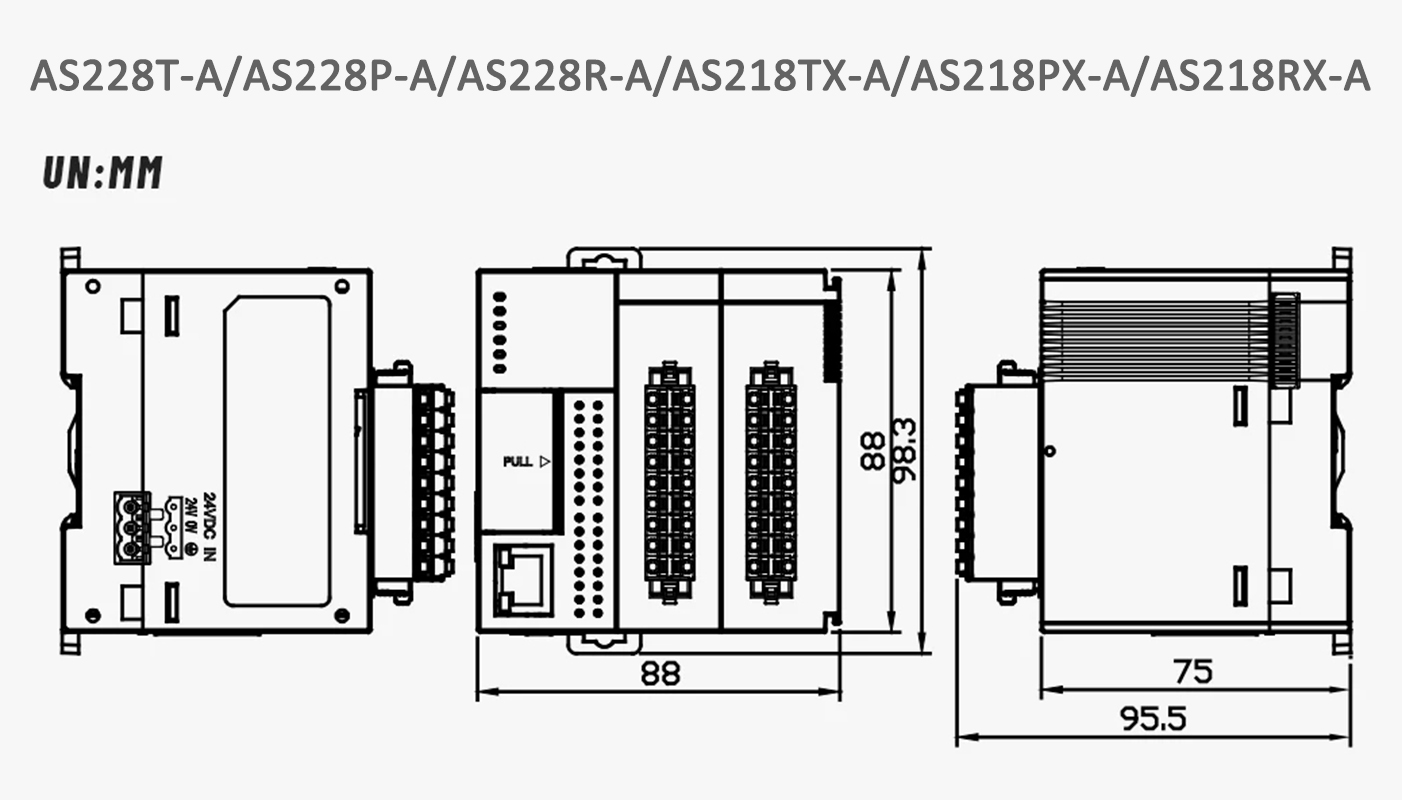

| Dimensions (W x H x D) in mm | 88 x 88 x 75 |
The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta's self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.
Applications
Automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines
