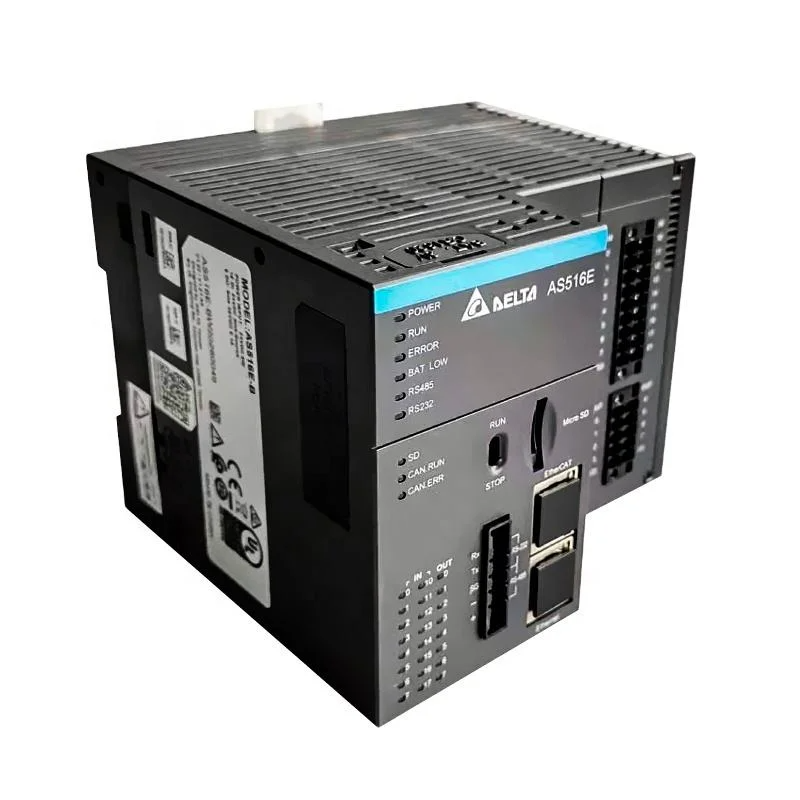

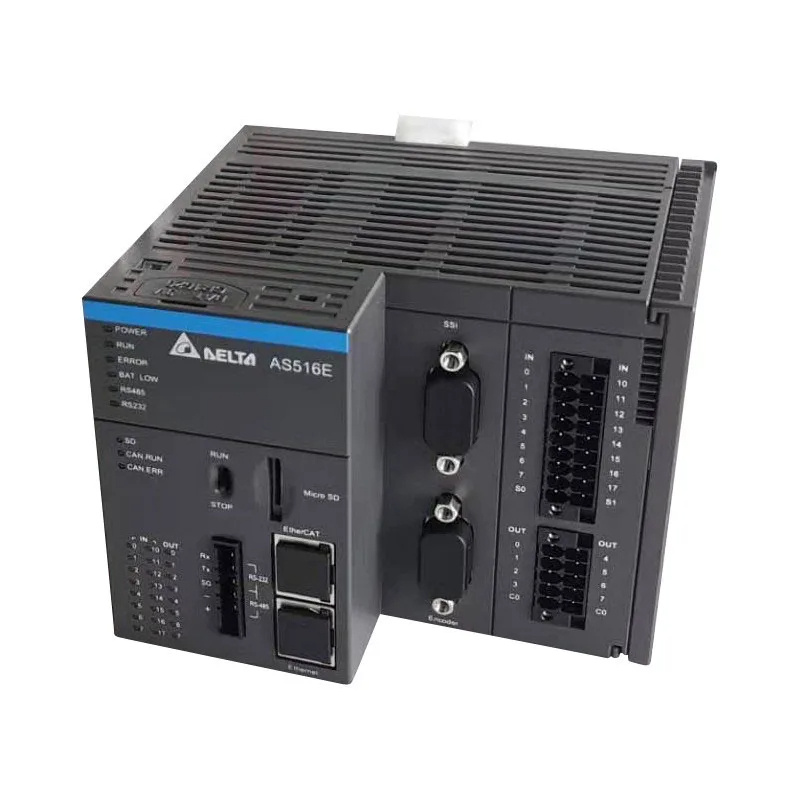

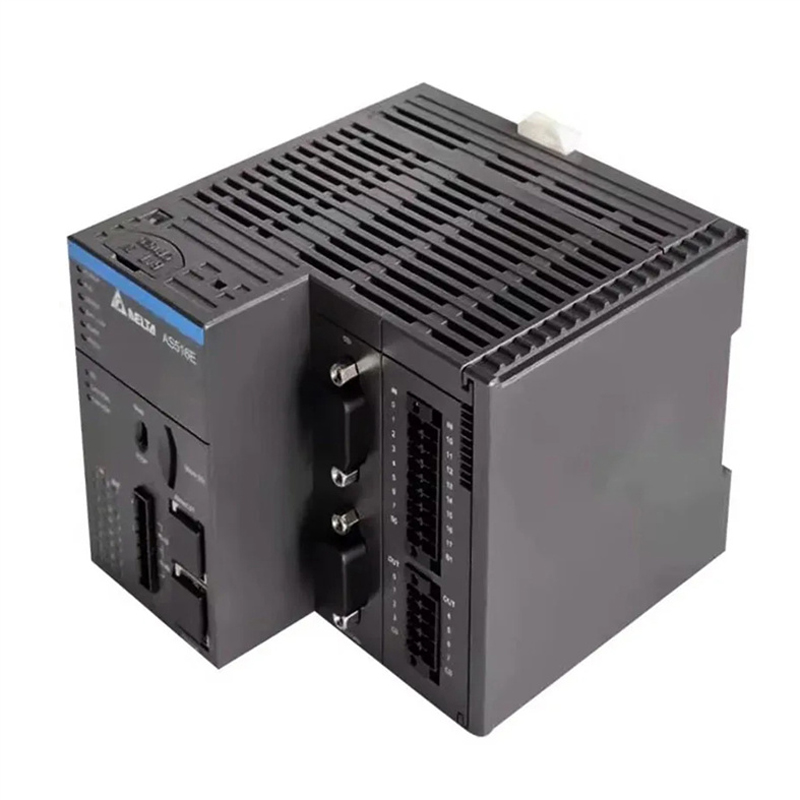

DELTA AS516E-B PLC Motion Control Network EtherCAT
Features & Benefits
Up to 32 axes can be synchronized (including virtual axes)
Offers motion function blocks complying with international standards, supporting Jerk and BufferMode to enable non-stop operation between motion paths
Supports encoder axes and virtual axes. No need to purchase additional encoder modules Easy-to-use basic motion control features:
- Single-axis speed/position/homing/torque control commands
Advanced motion features to fulfill complex processing requirements:
- Electronic gear, electronic cam and rotary cut applications function blocks
- G code/group axes commands: supports up to 8-axis linear/arc/helical interpolation
Supports AS series I/O modules with faster I/O response to CPU
Control program compatible with new generation DVP-MC series motion CPU, making effortless platform transition between DVP and AS motion controllers
Supports 3-party EtherCAT slaves (AS516E*), allowing a more flexible system structure
*Note: will be supported in future updates of AS516E
Description
| Power Supply (V) | Not Applicable |
| PLC Module Type | CPU |
| Output Method | Transistor (NPN) |
| Digital Input (points) | 16 |
| Digital Output (points) | 8 |
| Maximum DIO Count (points) | 1024 |
| Maximum AIO Module | 16 |
| Extension Direction | Not Applicable |
| Left Side Module Count | 0 |
| Right Side Module Count | 32 |
| Dimensions (W x H x D) in mm | 110 x 88 x 114.75 |
| Mounting | DIN Rail Mount |
Applications
Electronics manufacturing, packaging, printing, sealing, wire electrical-discharge machining, pharmaceutical machines, digital board cutting machines, CNC lathe, and more
