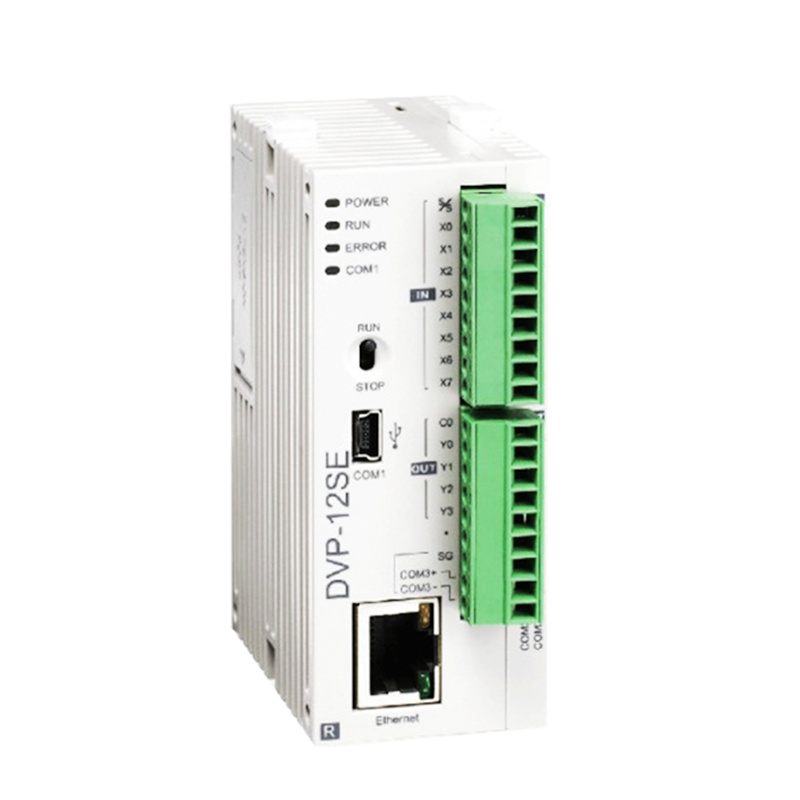

DELTA DVP12SE11R DVP12SE11T NPN PLC Controller DVP Series Slim CPU
Features & Benefits
The most complete network type slim PLC in the industry
Provides 8 digital inputs and 4 digital outputs
Built-in mini USB, Ethernet, and 2 RS-485 ports
Specifications
32-bit CPU for high-speed processing
Program capacity: 16k steps
Data register: 12k words
Max. execution speed of basic instructions: 0.64μs
Built-in Ethernet
DVP12SE：Modbus & Ethernet/IP (Explicit message)
DVP26SE：Modbus & Ethernet/IP (Adapter mode, explicit message)
Built-in mini USB port, RS-485 port*2 and Ethernet port that supports Modbus TCP and Ethernet/IP Slave (adapter)
IP Filter functions as firewall for first line protection against malware and network threats
Supports DVP-S Series modules (left-side and right-side)
※ Note: DVP26SE only supports right-side modules
No battery required; RTC function operates for 15 days after power off
Motion Control Functions
4 points of high-speed pulse output: 100 kHz / 2 points,10 kHz / 2 points
8 points of high-speed pulse input: 100 kHz / 2 points,10 kHz / 6 points, 1 set of A / B phase 50 kHz
Supports 2-axis linear and arc interpolation
Description
| Power Supply (V) | 24V DC |
| PLC Module Type | CPU |
| Output Method | Relay,Transistor (NPN) |
| Digital Input (points) | 8 |
| Digital Output (points) | 4 |
| RS485 | TRUE |
| Ethernet | TRUE |
| EtherNet/IP | TRUE |

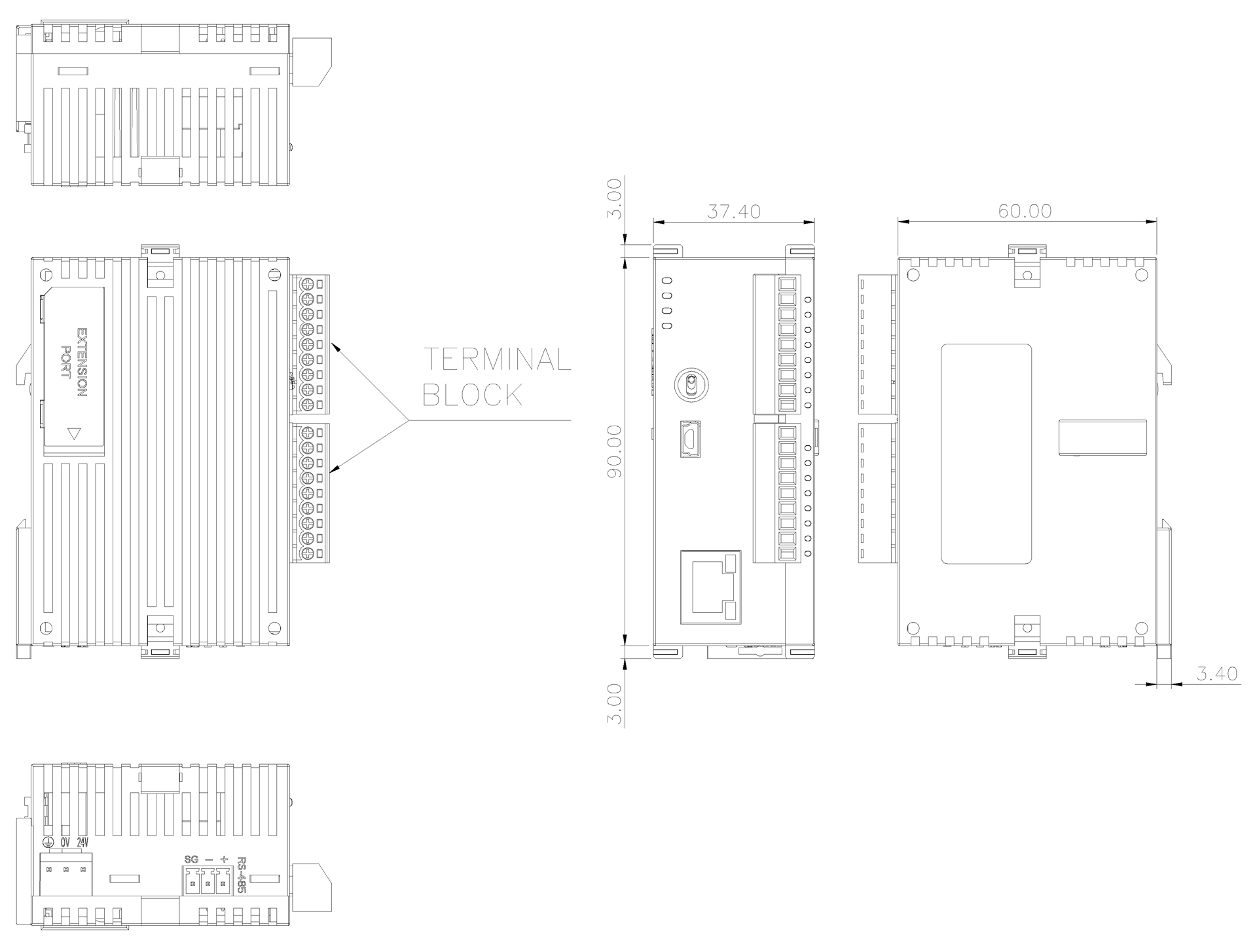

| Dimensions (W x H x D) in mm | 37.4 x 96 x 60 |
Applications
Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)

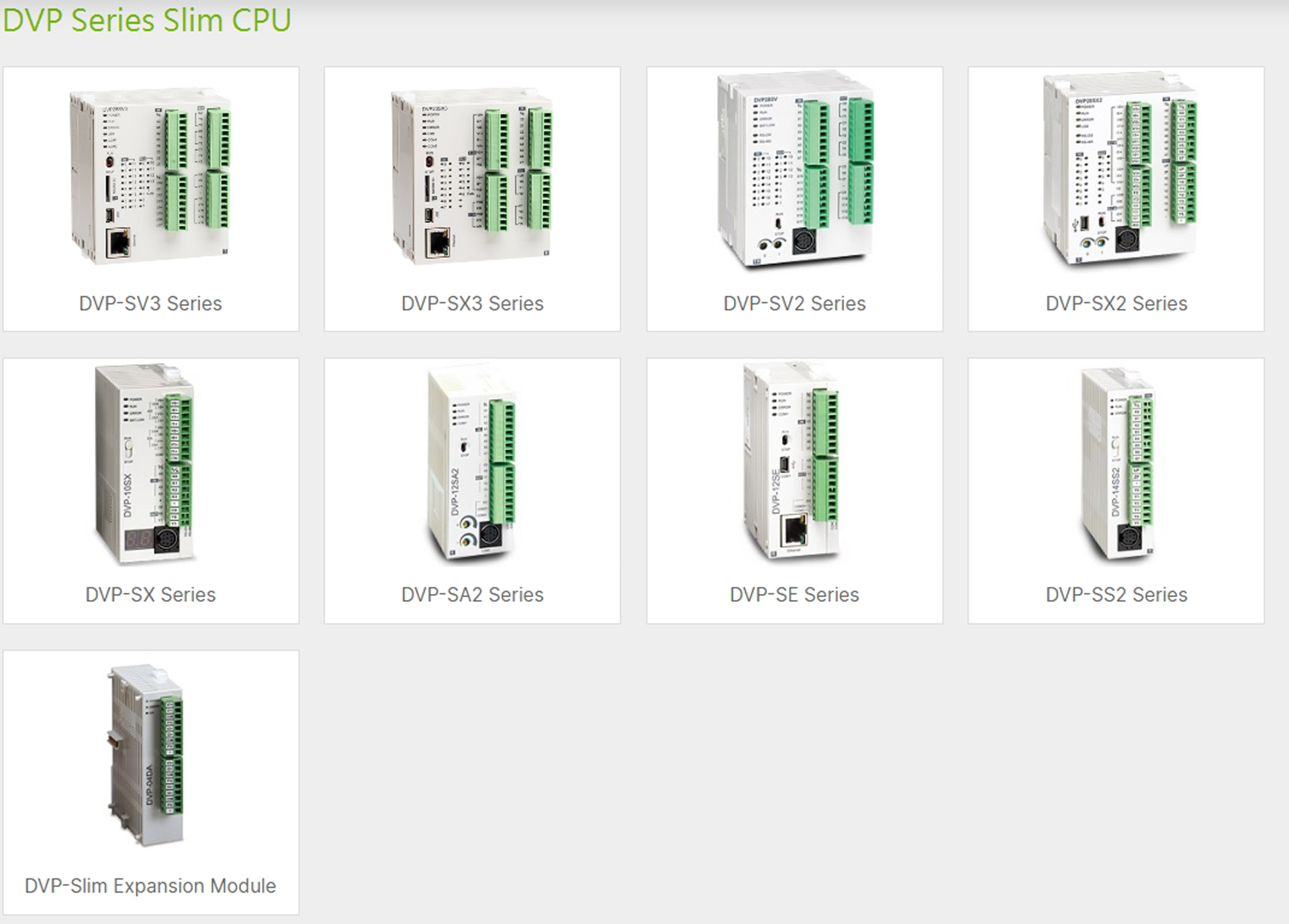

Programmable Logic Controllers - DVP Series
Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.
