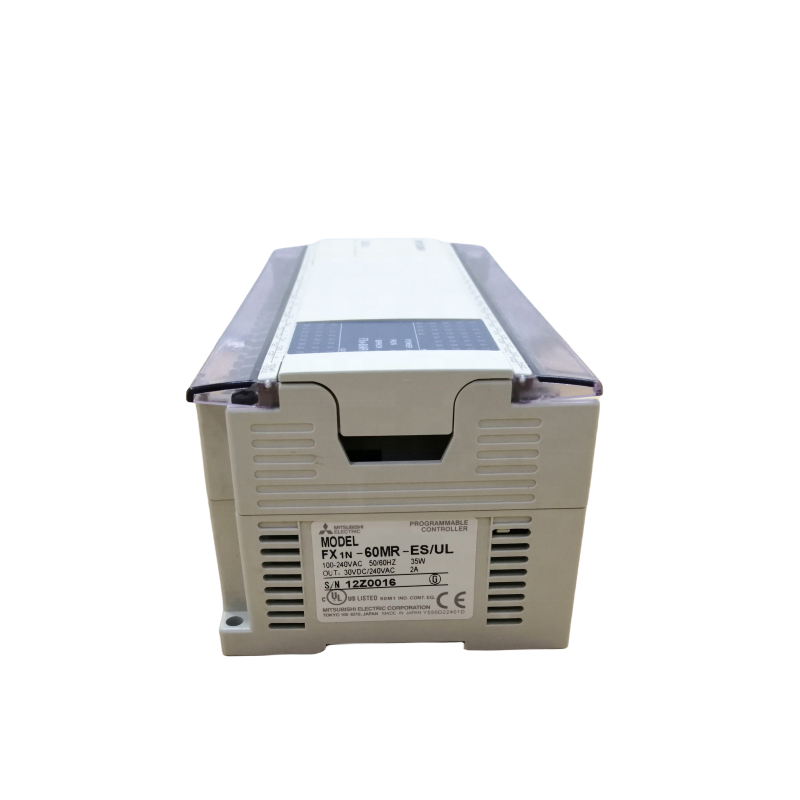

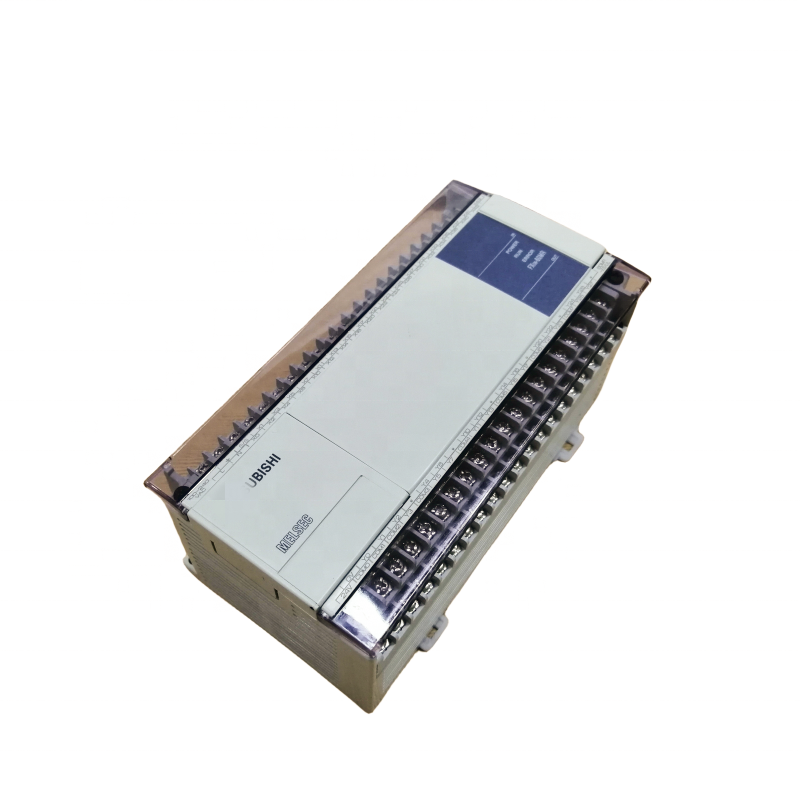

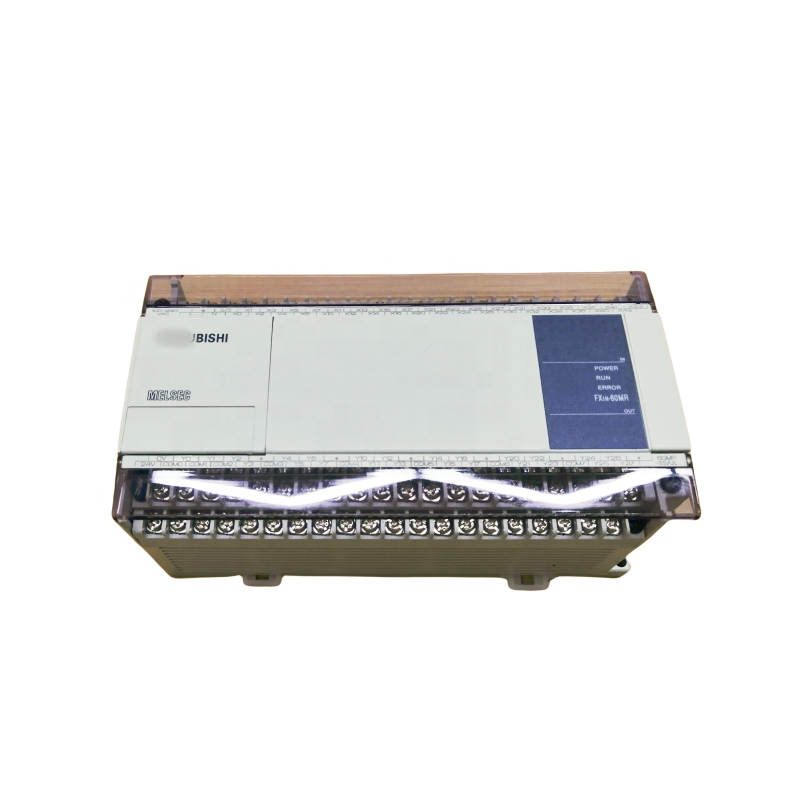

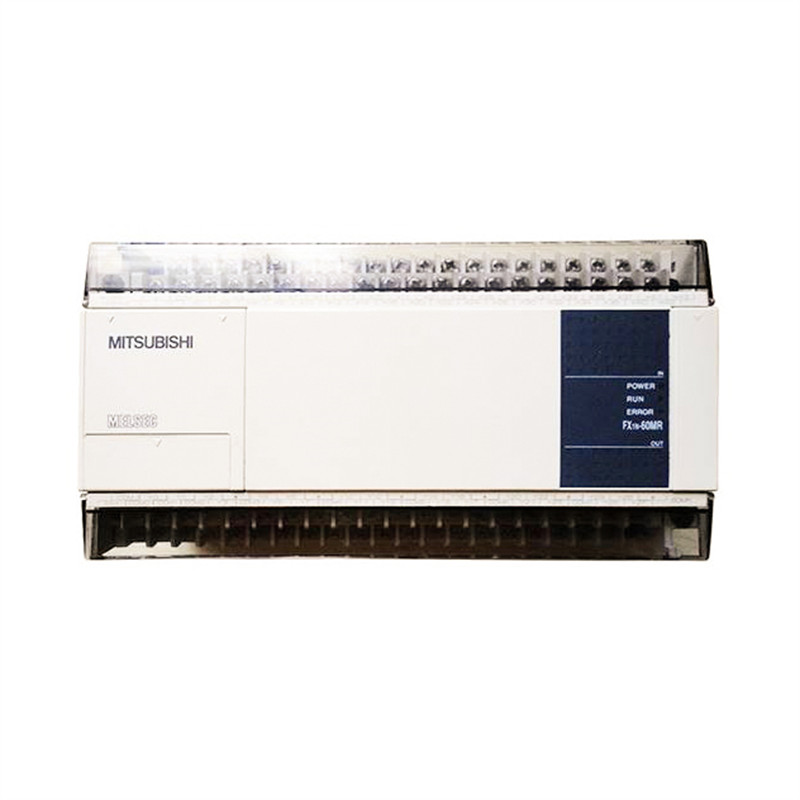

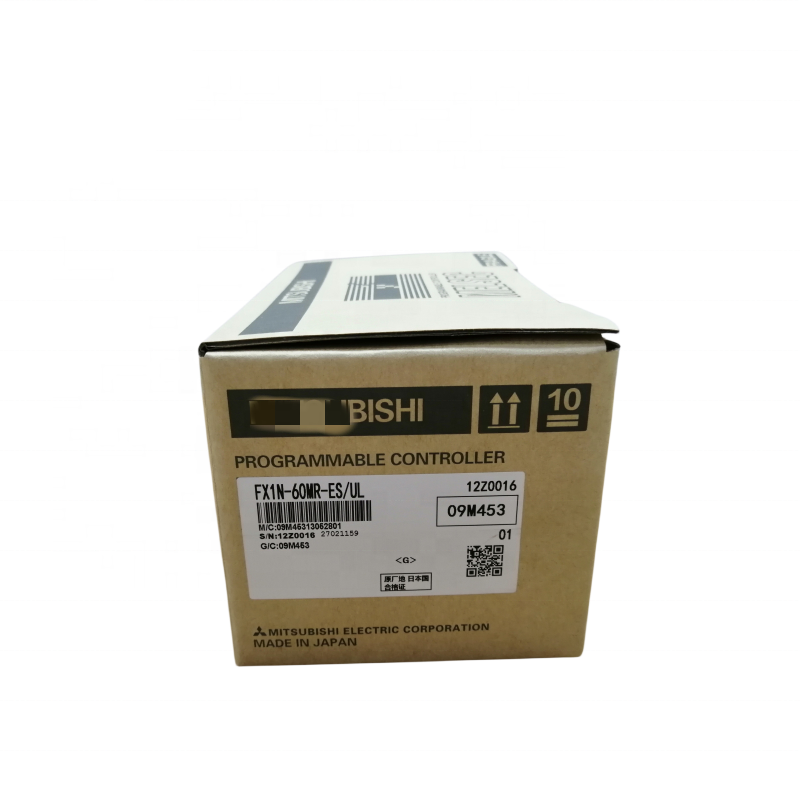

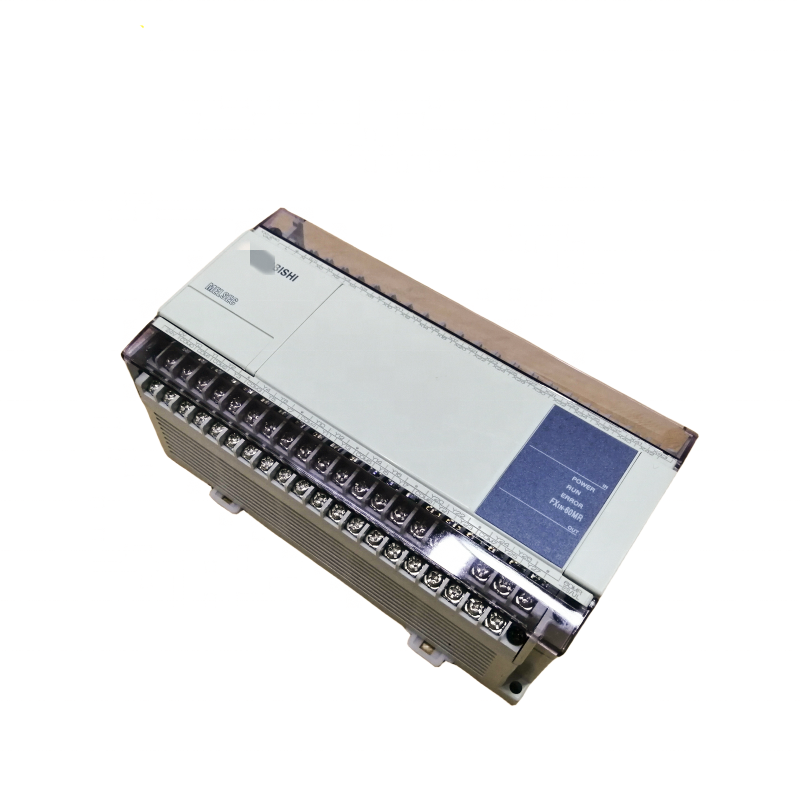

Mitsubishi PLC FX series module FX1N-60MT-ESS UL Programmable Logic Controller
Specifications
• Owned by Mitsubishi FX1N PLC small series, low cost
• Meets most basic requirements for Control system design
• Supports multiple modules to extend functionality and have simple connectivity.
• Relay output type allows PLC to switch with larger current (from 1.5A to 2A)
• High speed stand: 6 pins max 60KHz 1 phase, 2 max 30KHz 2 phase
• Expandable up to 132 I / O via module
• Expandable up to 2 modules Special functions
Standards:
• Meets EN, CE, UL / cUL quality standards
• Mitsubishi brand (Made in Japan)
· Product: FX1N
· Response time: 0.55 ~ 1.0 μs
· Fast pulse: 2 feet max pulse 100khz
· Program memory: 8,000 command steps
· Software Interface: Computer, HMI
· Programming:
* GX Developer V8.0 and 8.91
* GX Similator V7
* GX Work 2 + 3 full
· Programming languages: Ladder, Instruction, SFC
· Connection: RS-422, RS485 / RS232 (tr qua qua qua board mở rộng)
· Power consumption: 35W
· Process heat margin: 0ºC ~ 55ºC
· Storage temperature: -20ºC ~ + 70ºC
· Atmospheric humidity: 35 ~ 85% RH (neutral)

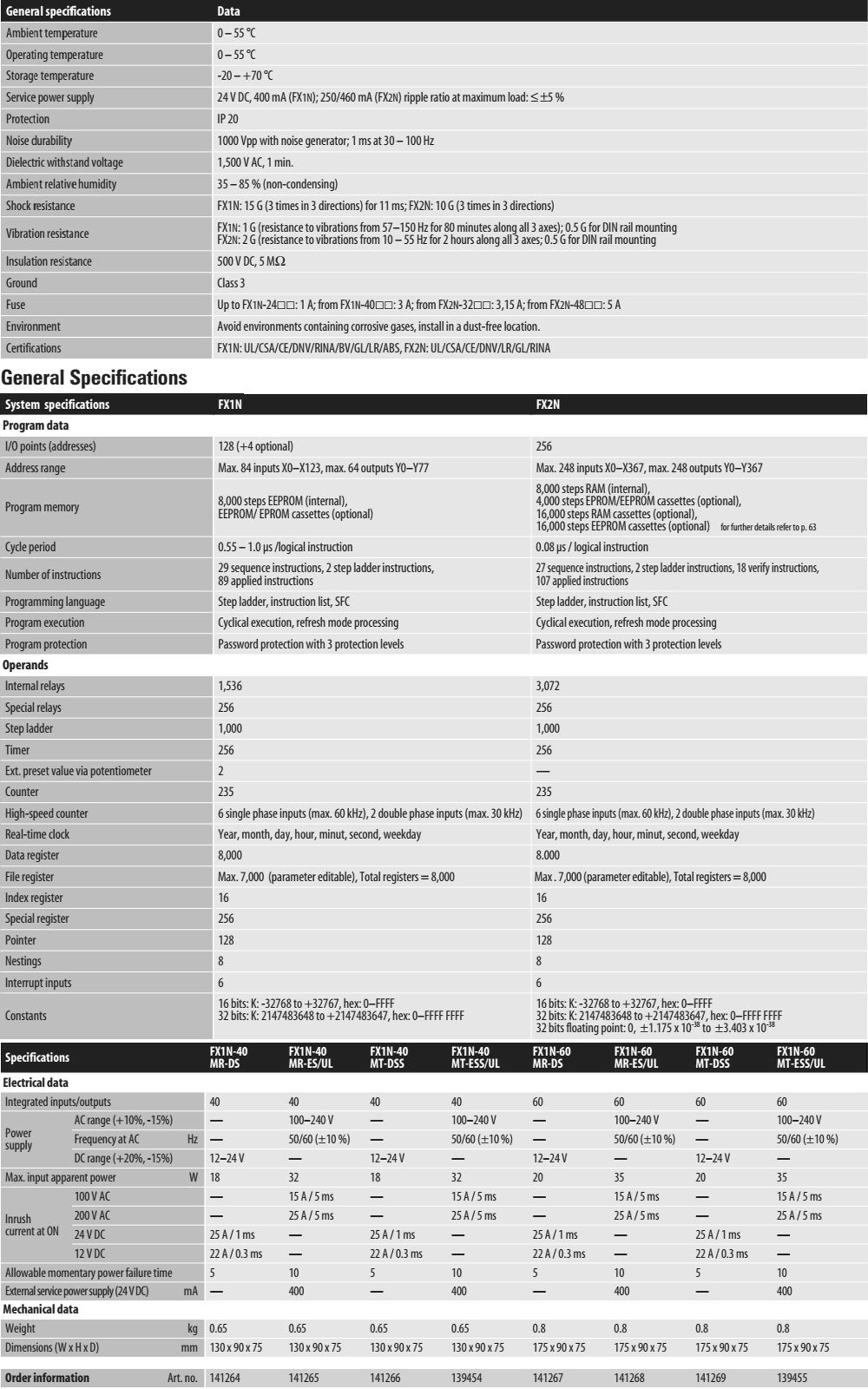

Description
| Power Supply (V) | 100 / 230V AC power 12-24V DC (power supply) |
| Total I / O Connections | 60 Digital I / O |
| Input | 36 out, Sink / Source type, 24V power inside |
| Output number | 24 in, Transistor type |
| Response time | 0.55 ~ 1.0 μs |
| Connection | RS-422, RS485 / RS232 |
| Power consumption(W) | 35 |
| Process heat margin | 0ºC ~ 55ºC |
| Storage temperature | -20ºC ~ + 70ºC |
| Atmospheric humidity | 35 ~ 85% RH (neutral) |
| Dimensions (W x H x D) in mm | 175 x 90 x 75 （0.8kg） |
| Protection Class | IP20 |
Applications
• Suitable for applications in the wood processing industry, product packaging ...
• Implementing machine management, machinery, environmental management systems
• Software for a small number of I / O requirements
