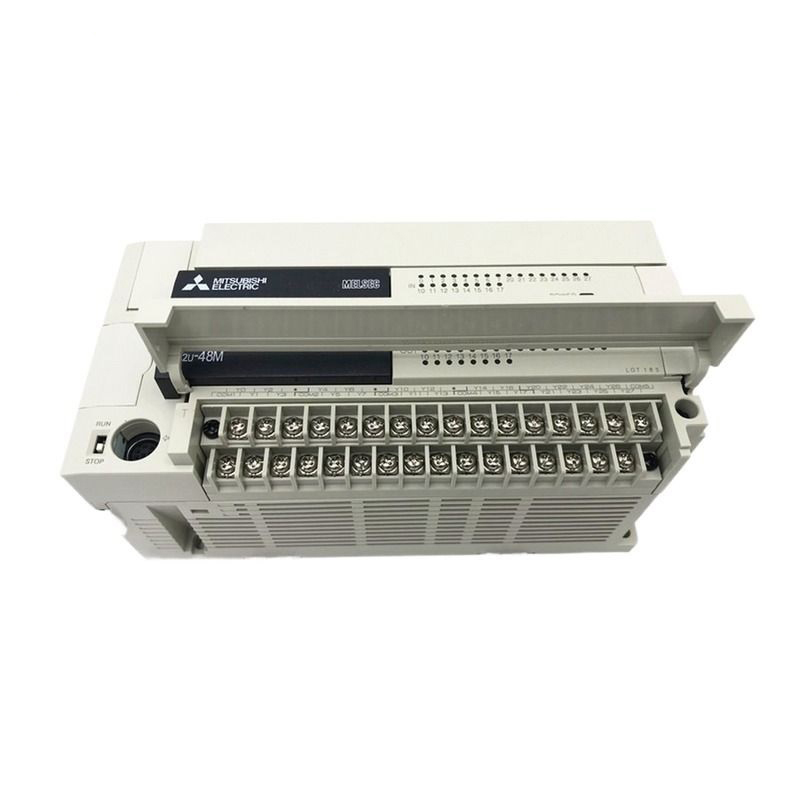

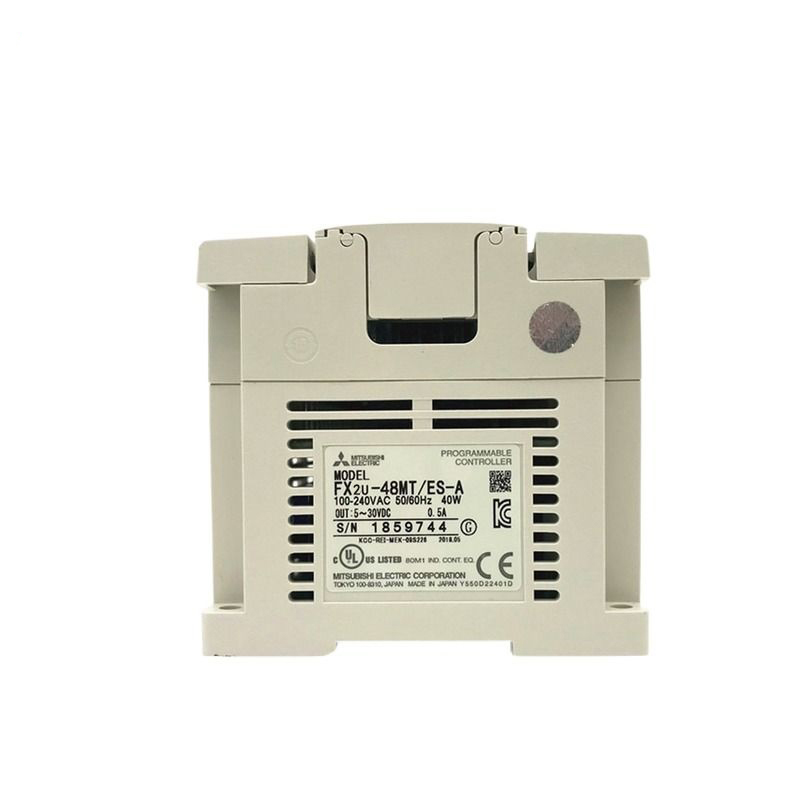

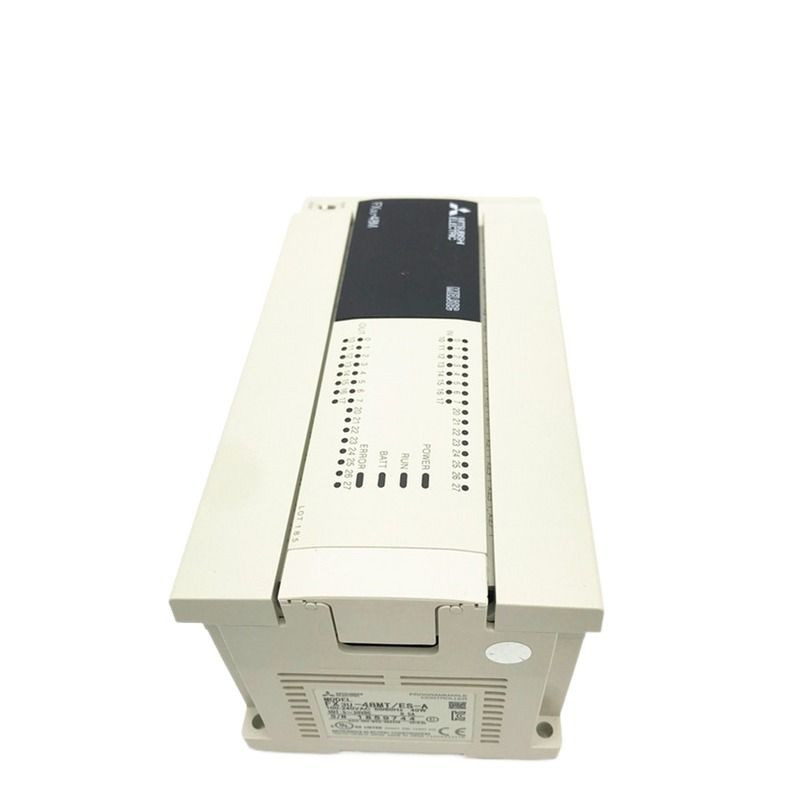

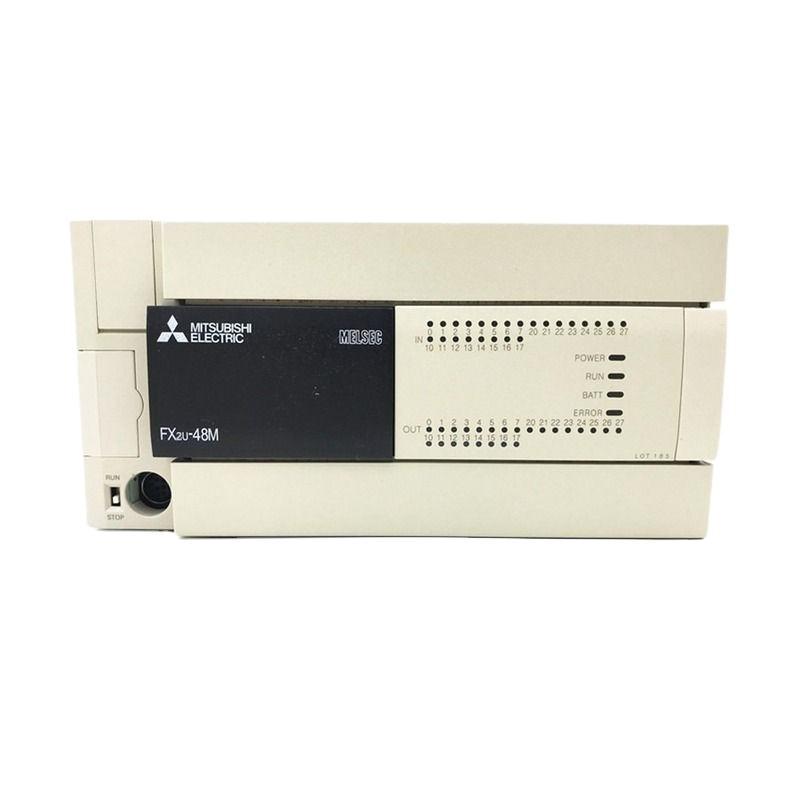

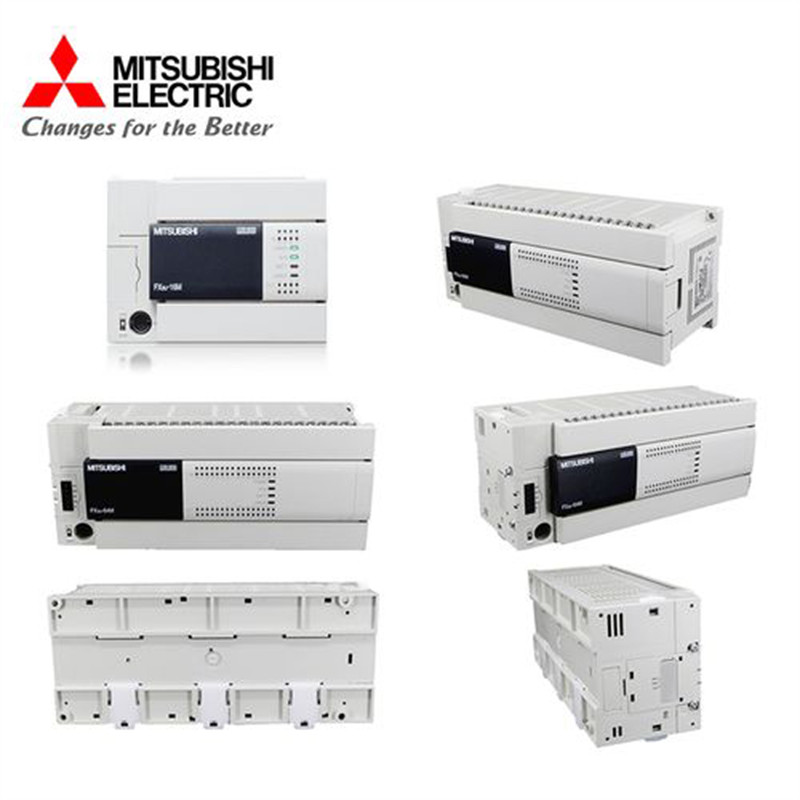

Mitsubishi PLC FX series module FX2N-48MT Programmable Logic Controller

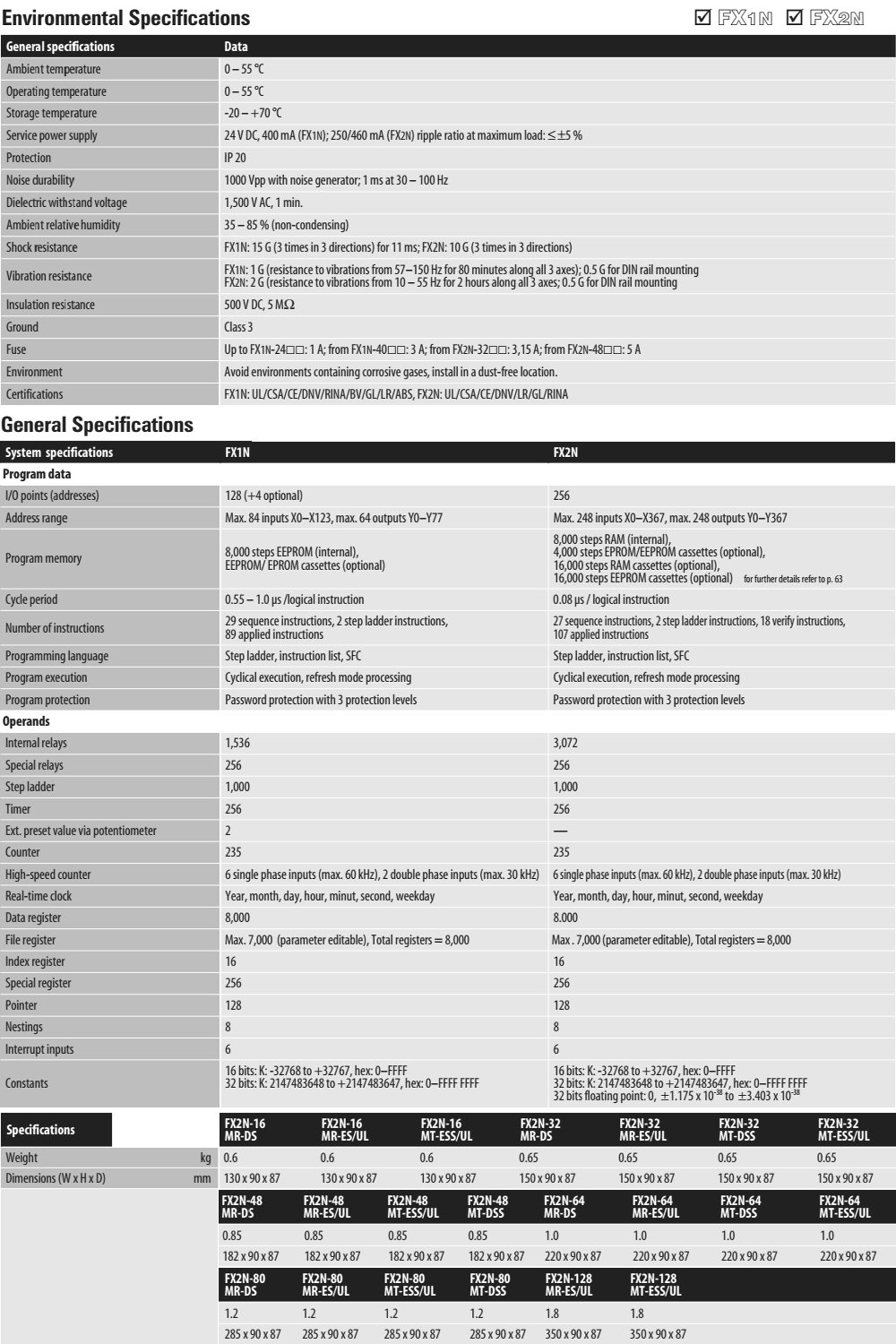

Specifications
Mitsubishi FX2N-48MT PLC Program
Other names
- Programmable controllers
- Programmable Logic controllers
• Owned by Mitsubishi FX2N PLC, low cost, low cost
• Meets most basic requirements for control system design Check
• RS422 communication connection Supports RS485 / RS232 expansion board
• High speed stand: 6 pins max 60KHz 1 phase, 2 max 30KHz 2 phase
• Expandable up to 256 I / O via module
• Function module up to 8 Zoom-able.
· Product: FX2N
· Fast pulse: 2 feet max pulse 20Khz
· Program memory: 16,000 command steps
· Software Interface: Computer, HMI
· Programming:
* GX Developer V8.0 and 8.91
* GX Similator V7
* GX Work 2 + 3 full
· Programming languages: Ladder, Instruction, SFC
· Connection: RS-422, RS485 / RS232 (tr qua qua qua board mở rộng)
· Power consumption: 30W / 50 VA
· Process heat margin: 0ºC ~ 55ºC
· Storage temperature: -20ºC ~ + 70ºC
· Atmospheric humidity: 35 ~ 85% RH (neutral)
Description
| Power Supply (V) | 24V DC power 100 / 240V AC |
| Total I / O Connections | 48 Digital I / O |
| Input | 24 out |
| Output number | 24 in, Transistor type |
| Response time | 10 ms |
| Connection | RS-422, RS485 / RS232 |
| Power consumption(W) | 30W / 50 VA |
| Program memory | 16,000 command steps |
| Storage temperature | -20ºC ~ + 70ºC |
| Atmospheric humidity | 35 ~ 85% RH (neutral) |

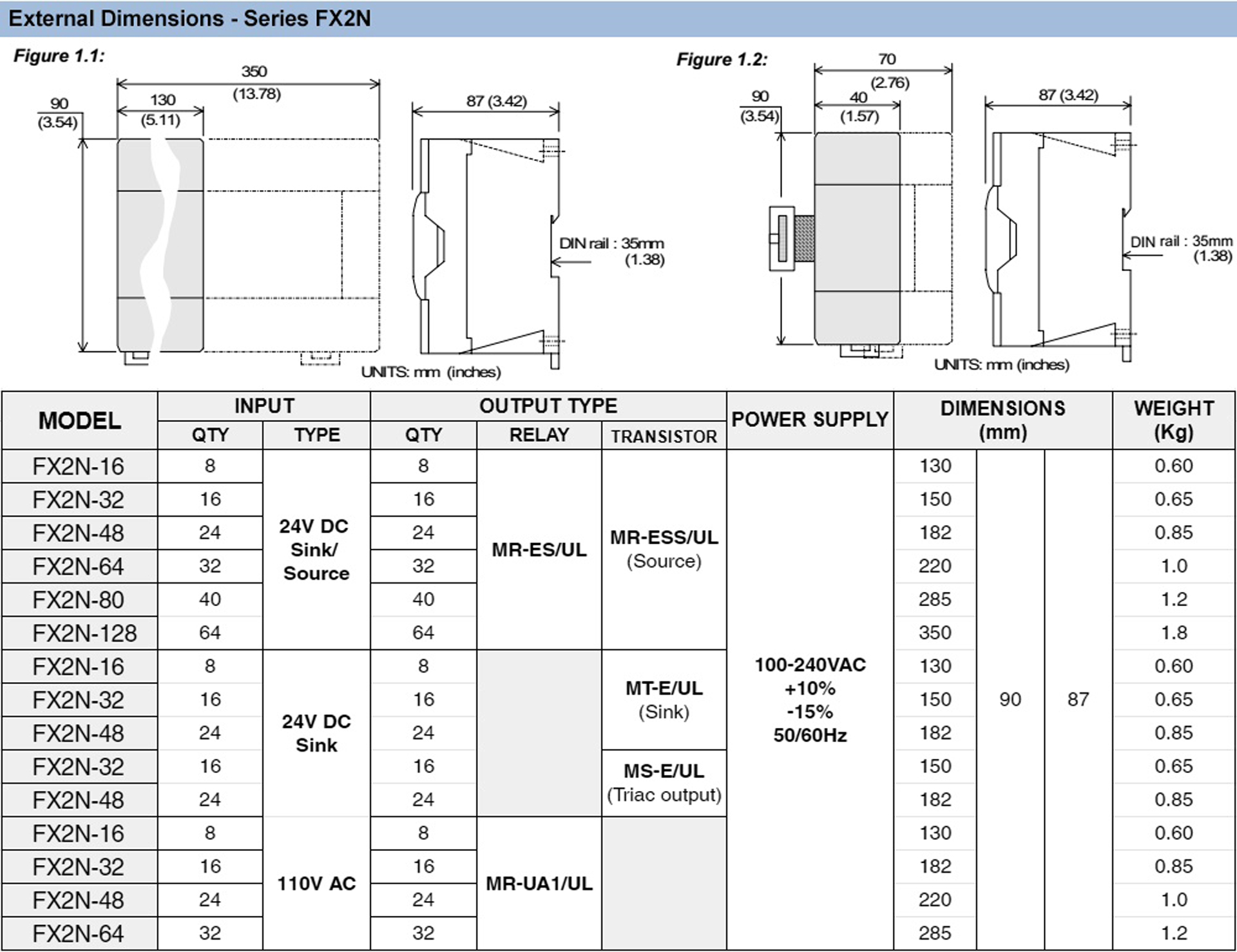

| Dimensions (W x H x D) in mm | 182 x 90 x 87（0.85kg） |
| Installation type | DIN Rail |
Applications
• Used in small and medium management systems
• Used for belts, water treatment, packaging, conveyor belts
• Used for textile machine control systems, ship construction and assembly
