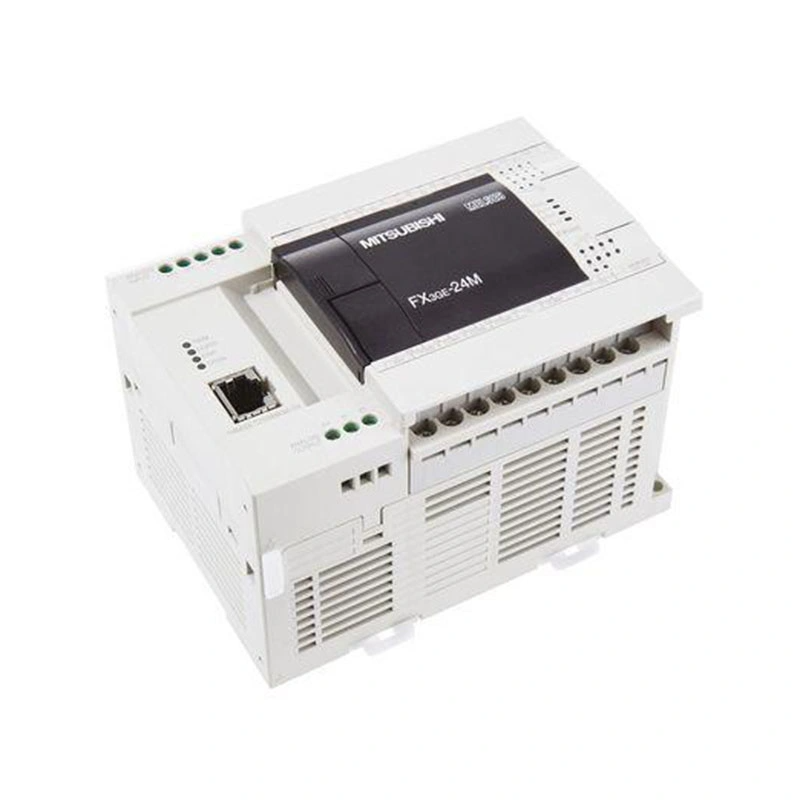

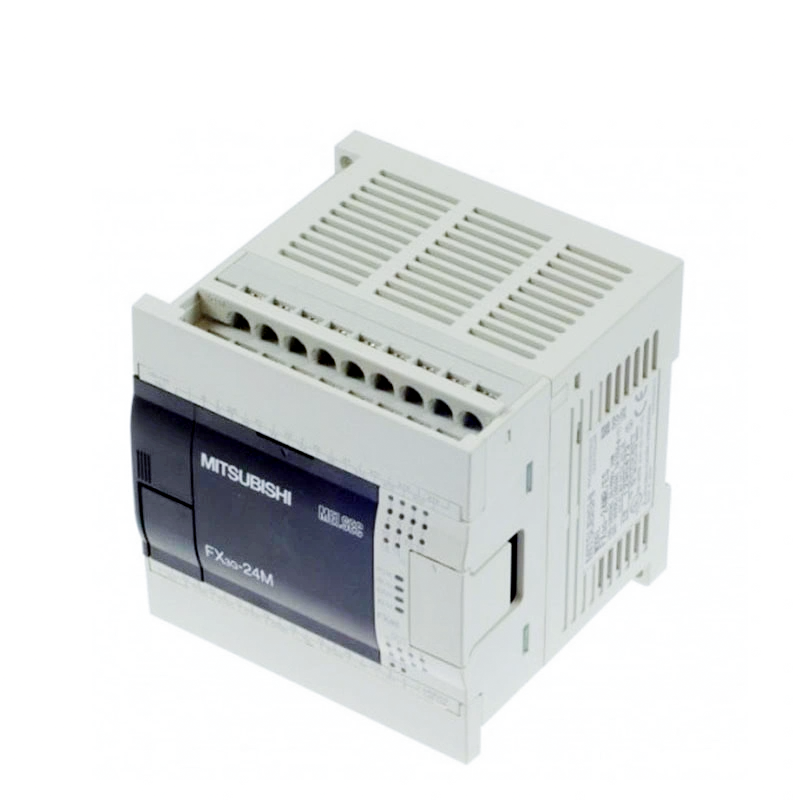

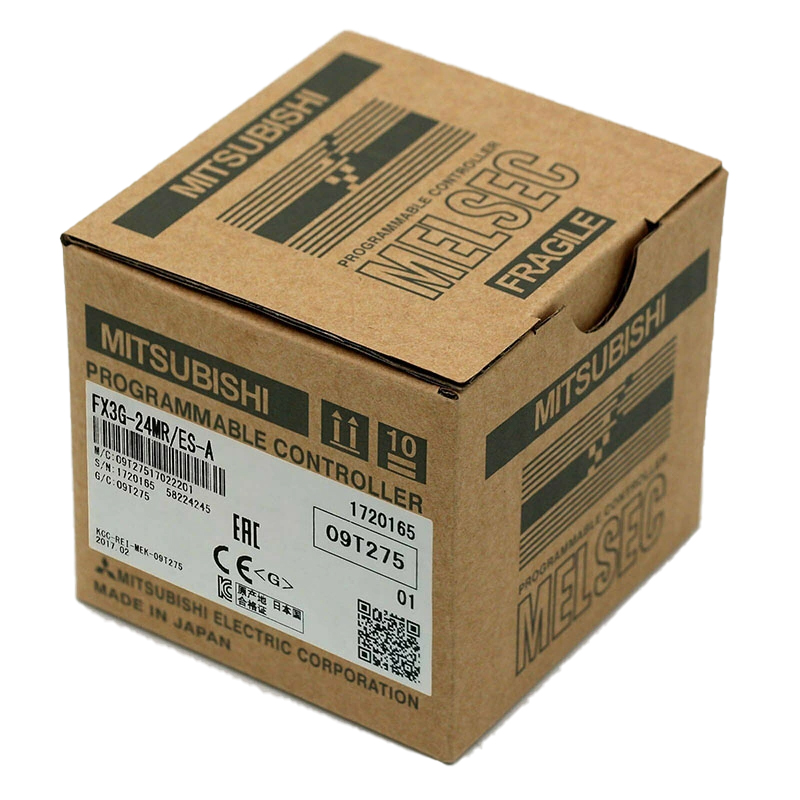

Mitsubishi PLC FX series module FX3G-24MR / ES-A Programmable Logic Controller
Mitsubishi FX3G-24MR / ES-A PLC Program
Other names
- Programmable controllers
- Programmable Logic controllers
Specifications
• Compact production based on state-of-the-art technology
• Saleable to 128 I / O via module or 256 I / O via CC-Link
• Saleable module function (analog, contact temperature ...)
• FX3G is upgraded from the FX1N PLC series for greater flexibility
• Speed of operation Single logic introduction is 0.21 s, 32Kb internal memory
• Enables on real numbers and interference
• Built-in 60KHz buffer
• 3 independent pulse outputs up to 100KHZ
• Supports Mini USB cable
Board Expansion Supports RS232, RS485, Ethernet, CC-Link
• Easy-to-use GX Works2 programming suitable for many needs.
• High durability, stable operation, good management ability
☼ Standards:
• Meets EN, CE, UL / cUL quality standards
• Mitsubishi brand (Made in Japan)
· Software Interface: Computer, HMI
· Programming:
* GX Developer V8.0 and 8.91
* GX Similator V7
* GX Work 2 + 3 full
· Connectivity: USB, RS-422, Ethernet, CC-Link (Master / Slave)
· Power consumption: 32W

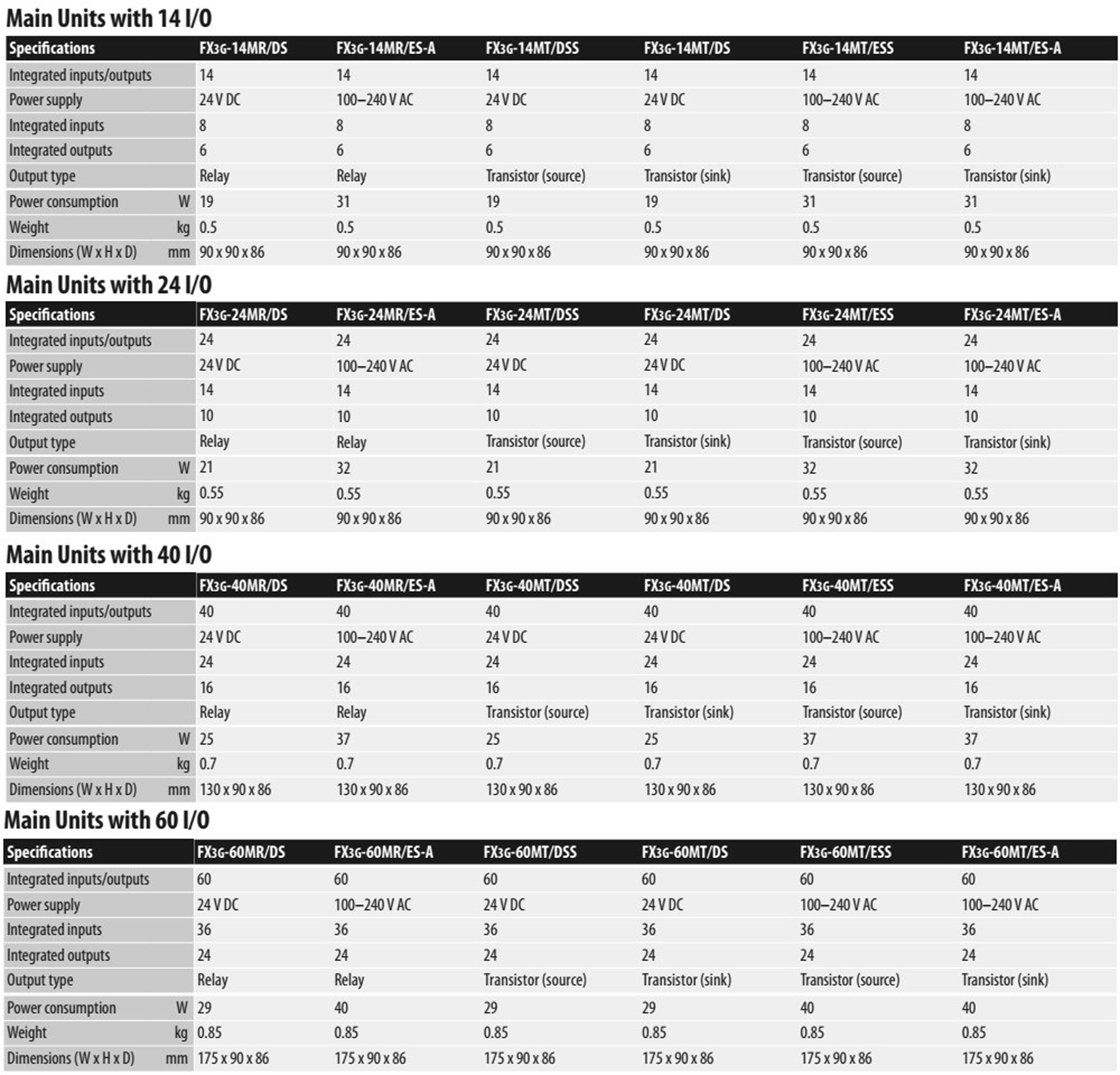

Description
| Power Supply (V) | 100 / 240V AC |
| Total I / O Connections | 24 Digital I / O |
| Input | 14 out, Sink / Source type |
| Output number | 10 In, Relay type |
| Response time | 0.21 μs |
| Connection | USB, RS-422, Ethernet, CC-Link (Master / Slave) |
| Power consumption(W) | 32 |
| Program memory | 32,000 command steps |
| Storage temperature | -20ºC ~ + 70ºC |
| Atmospheric humidity | 35 ~ 85% RH (neutral) |

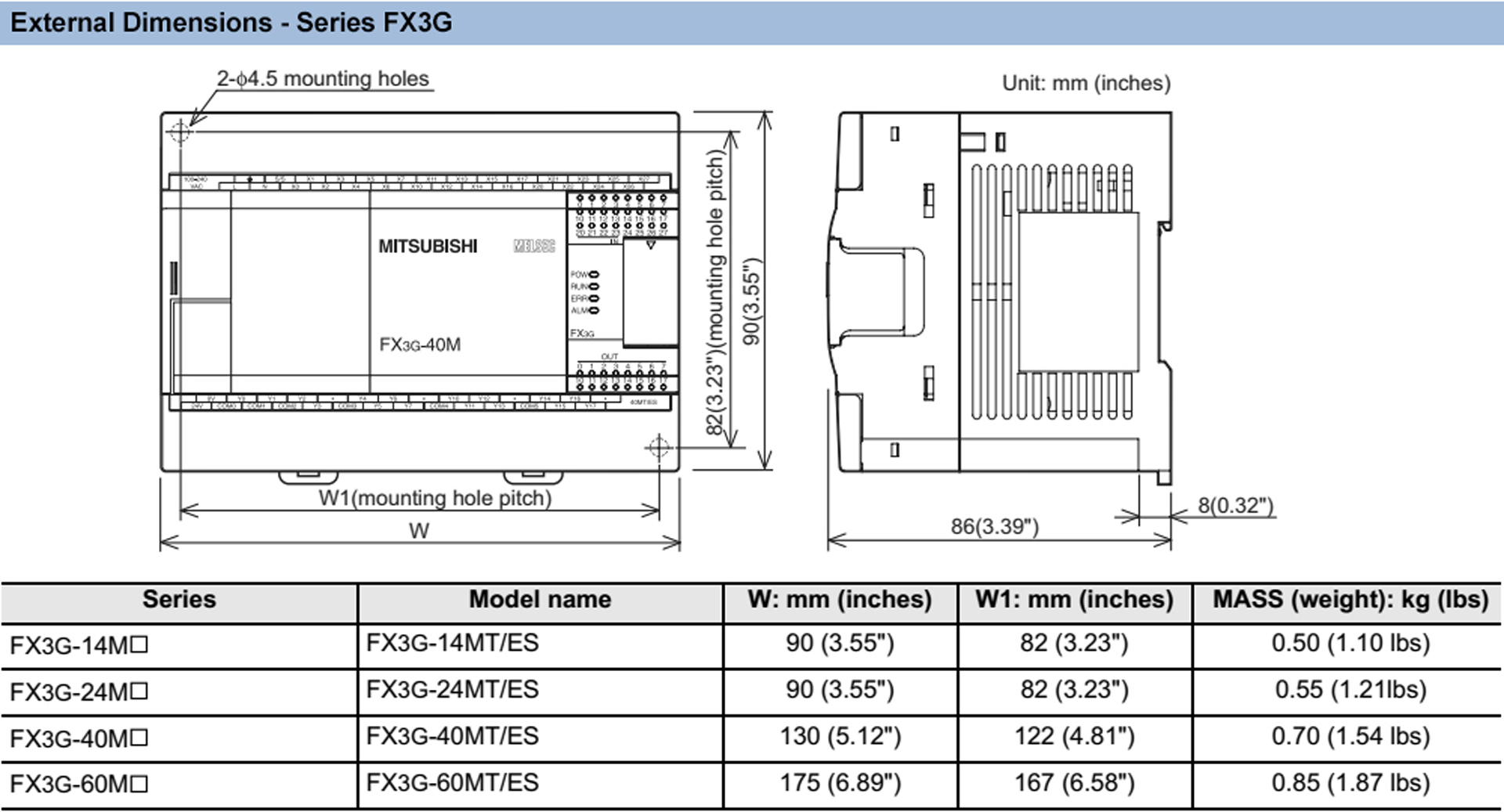

| Dimensions (W x H x D) in mm | 190 x 90 x 86 （0.55kg） |
| Installation type | DIN Rail |
Application Program
• Extensive application in agro-industry automation systems
• Suitable for food, beverage ...
• Integrated application in construction, transportation, communication, irrigation
• Waste treatment program, handling equipment, fans, pumps ...
