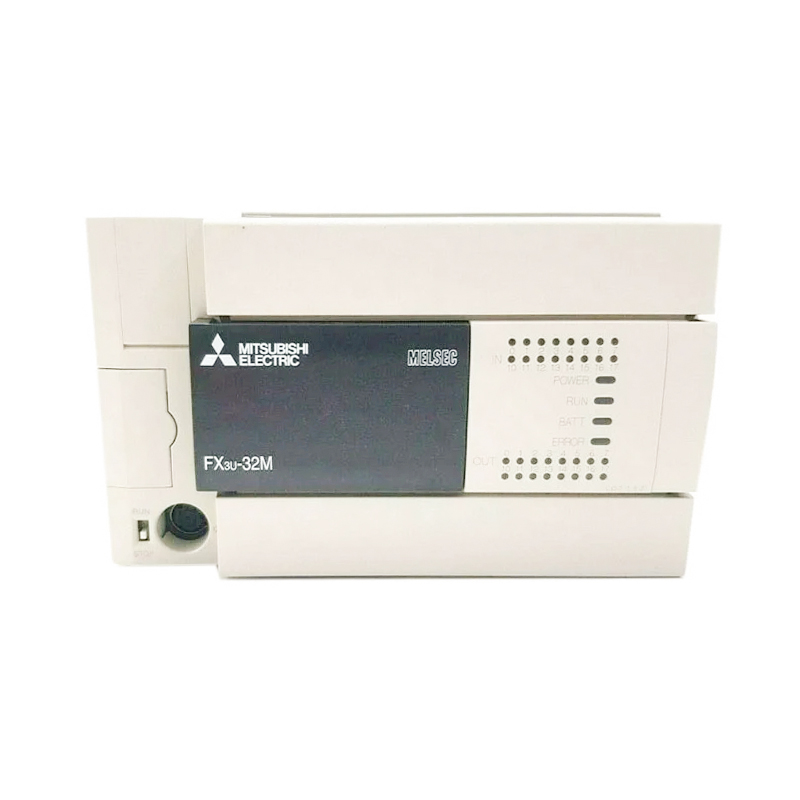

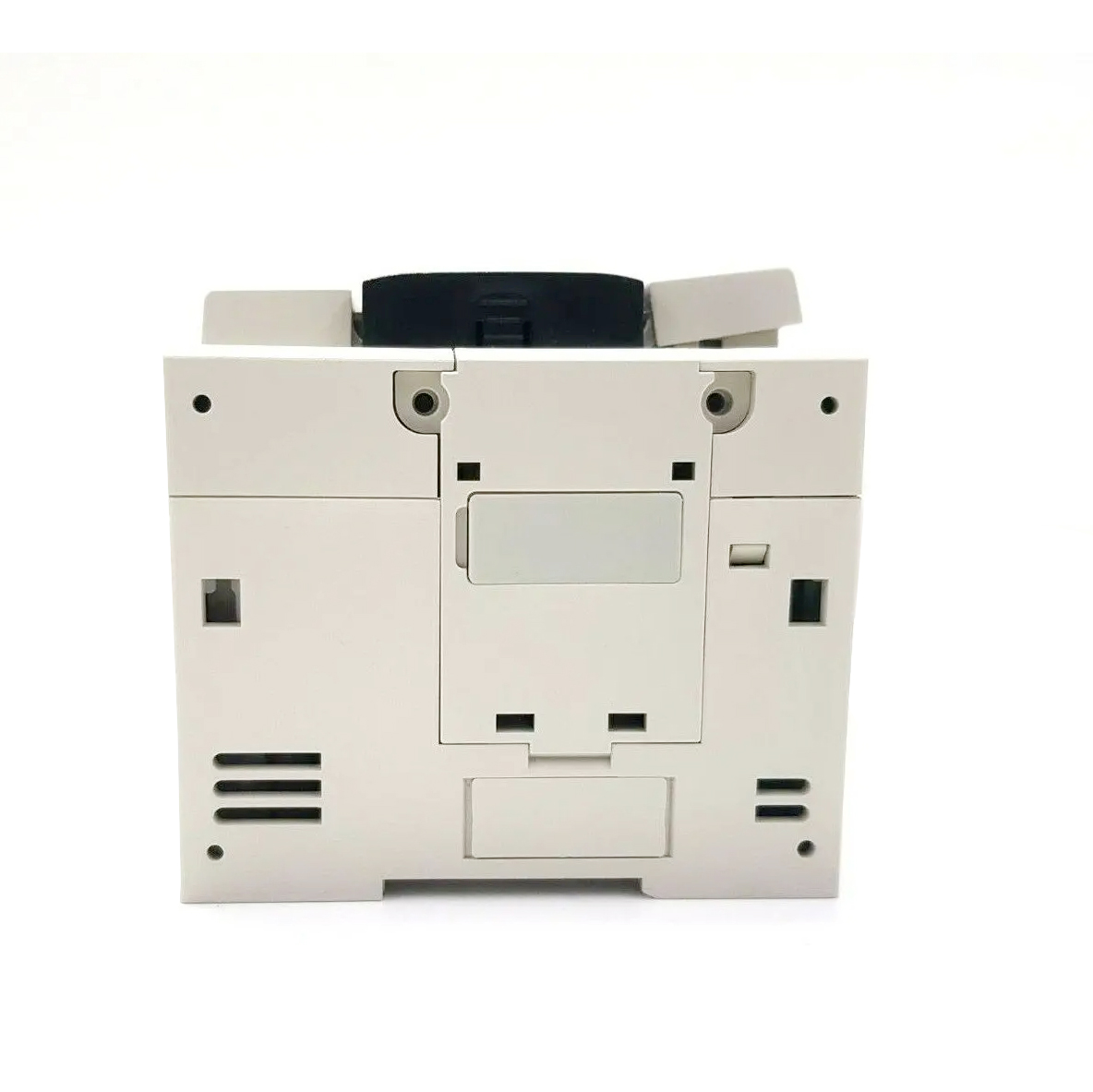

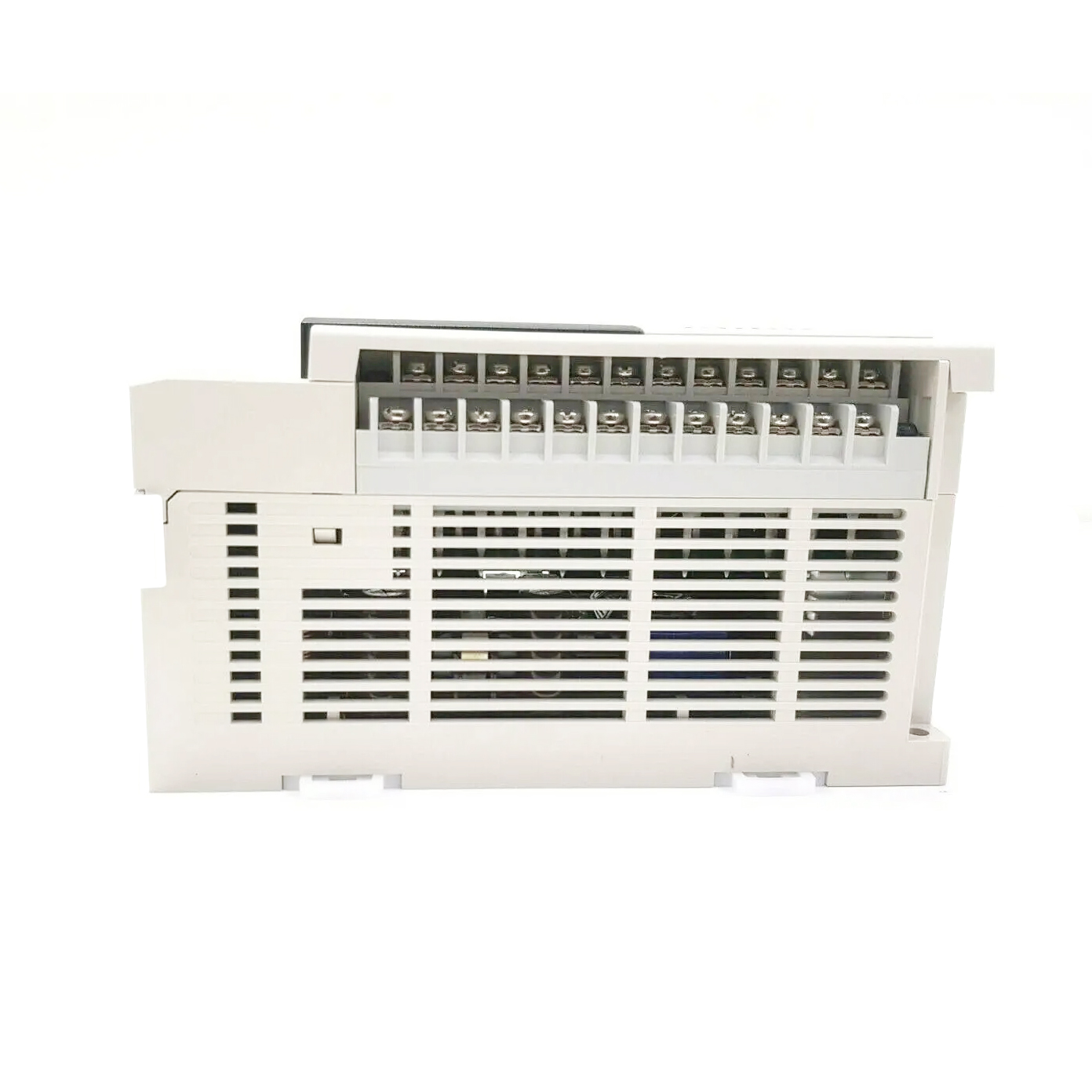

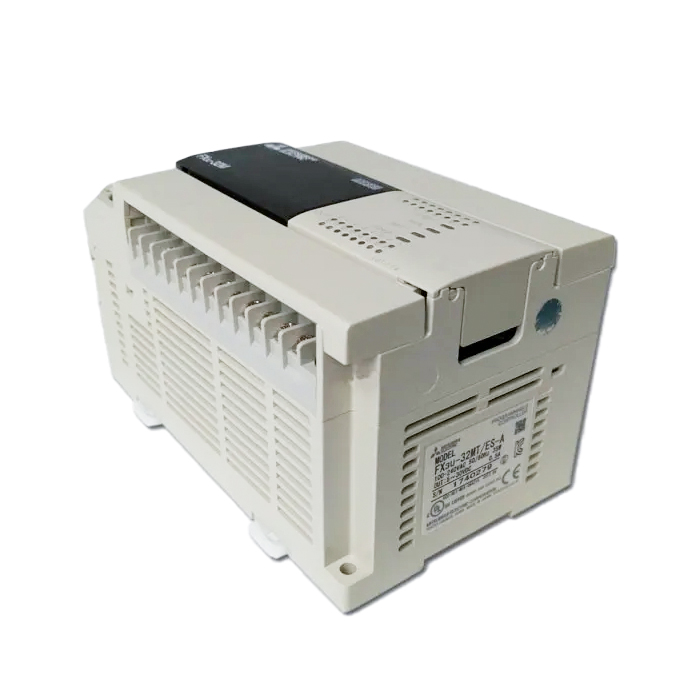

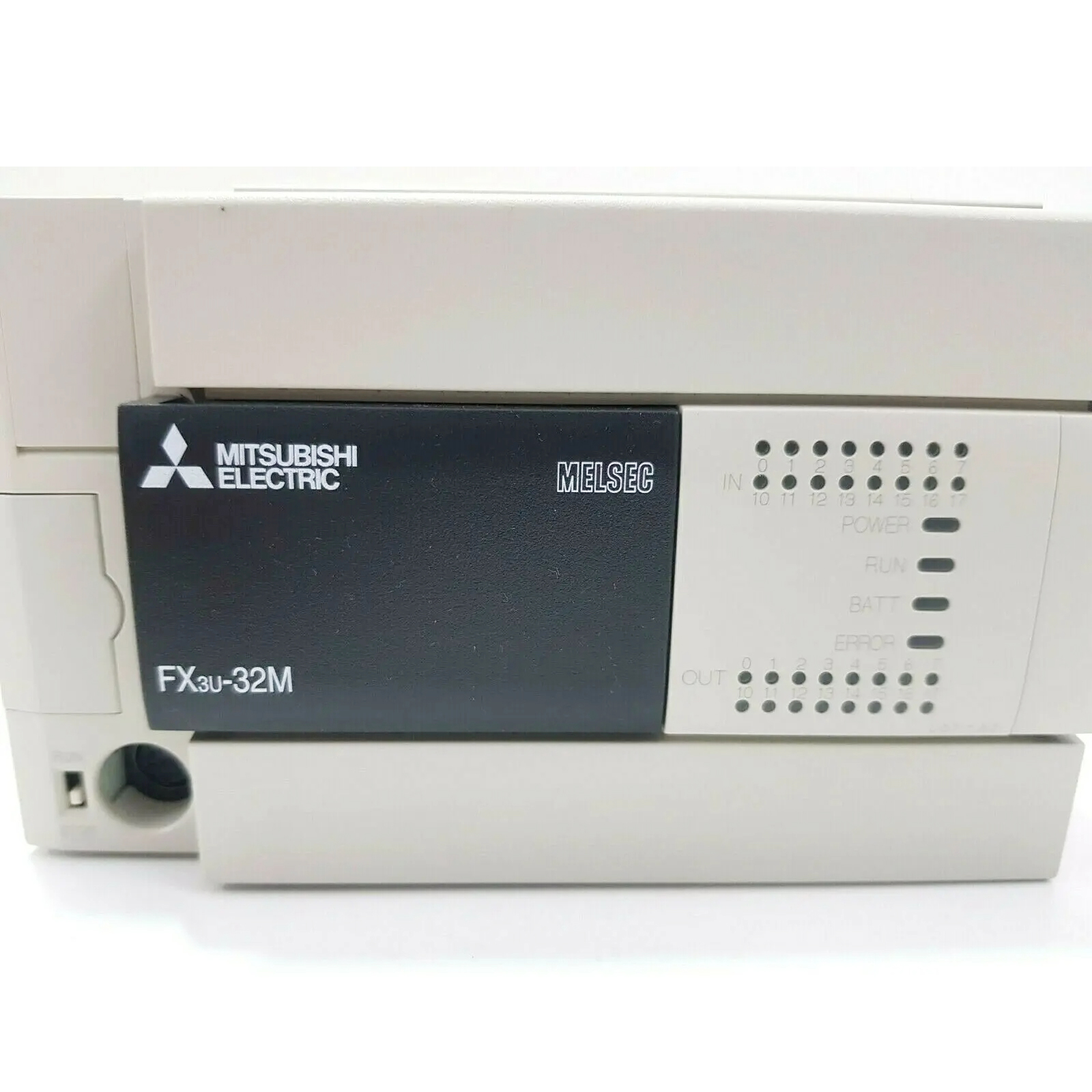

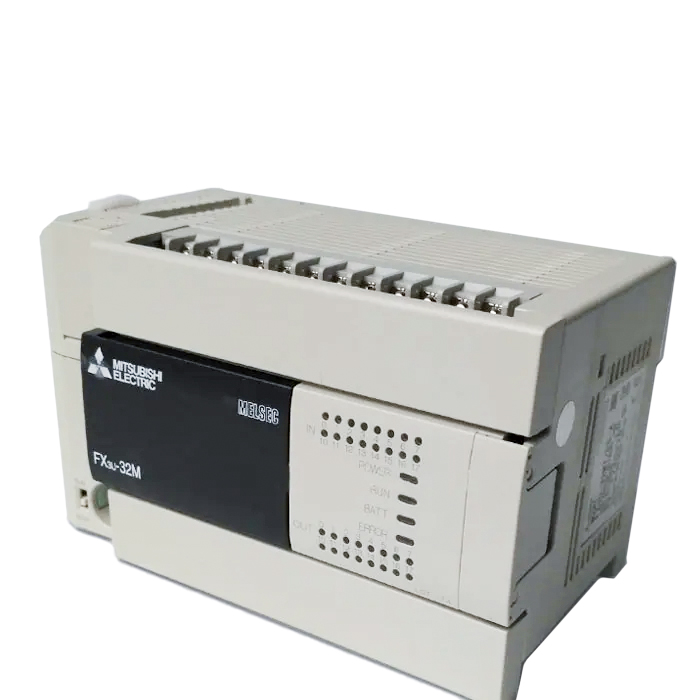

Mitsubishi PLC FX series module FX3U-32MR/ES-A Programmable Logic Controller
The MEL SEC-F Series PLC incorporates power supply, CPU and I/Os into a single compact unit. It perfectly meets the diverse needs of a variety of user applications with options for I/O, analog, positioning and open network expansion.
Specifications
Mitsubishi FX3U-32MR / ES PLC Program
Other names
- Programmable controllers
- Programmable Logic controllers
• Small enough size with high speed Dual System Bus
• High technology production line
• Memorize large programs with fast read and write capabilities
• Simple programming: LAD, STL, ... Easy to manage folders and scripts
• Uses 2 Sink / Source input modes to be compatible with all types of sensors
• Pulse reader Comes with multiple HSCs.
Compatible with FX2N series modules
• 100kHz high-speed input suitable for high-precision encoder pulse readings.
• Relay output allows switching load current up to 2A
• Supports multiple module types to extend functionality (analog communication, pulse generator, I / O, ...)
• Multifunctional connection, multi-device communication: Monitor, Inverter, Servo, Ethernet ...
• High durability, stable operation, capability Good management
☼ Standards:
• Meets EN, CE, UL / cUL quality standards
• Mitsubishi brand (Made in Japan)
Description
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | RAM |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 384 |
| Power Consumption (W) | 35 |

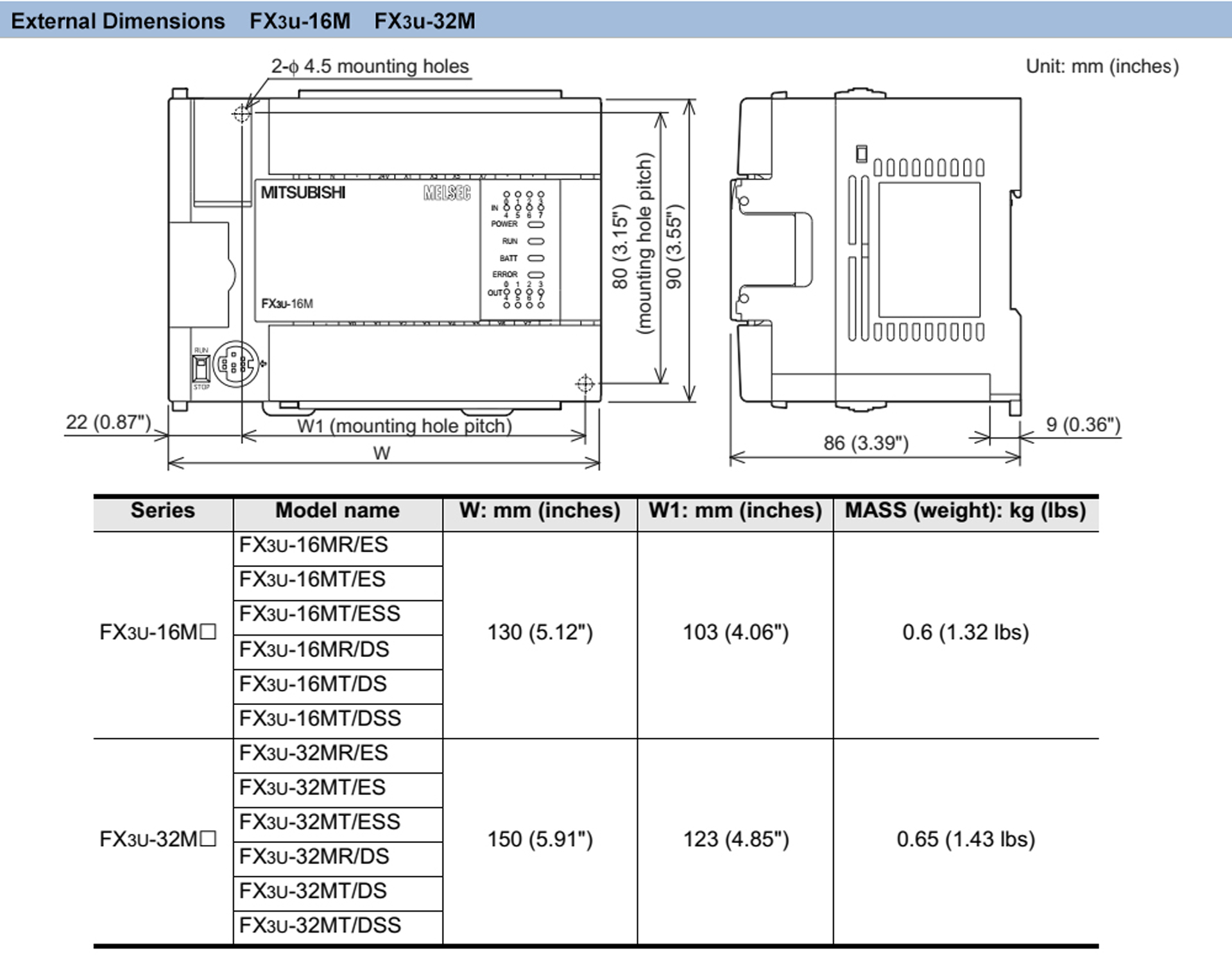

| Dimensions (W x H x D) in mm | 150*90*86 （0.65kg） |
| Protection Class | IP10 |
Applications
• Transmitter output suitable for ON / OFF control devices Required 1A ~ 2A
• Use Widely used in controllers of industrial systems from simple to complex
• Widely used in textiles, plastic packaging, food ...
• Automated systems in medicine, electronics, mechanics, machinery ...
Multi-sector applications: packaging, waste treatment, pumps, transmitters
