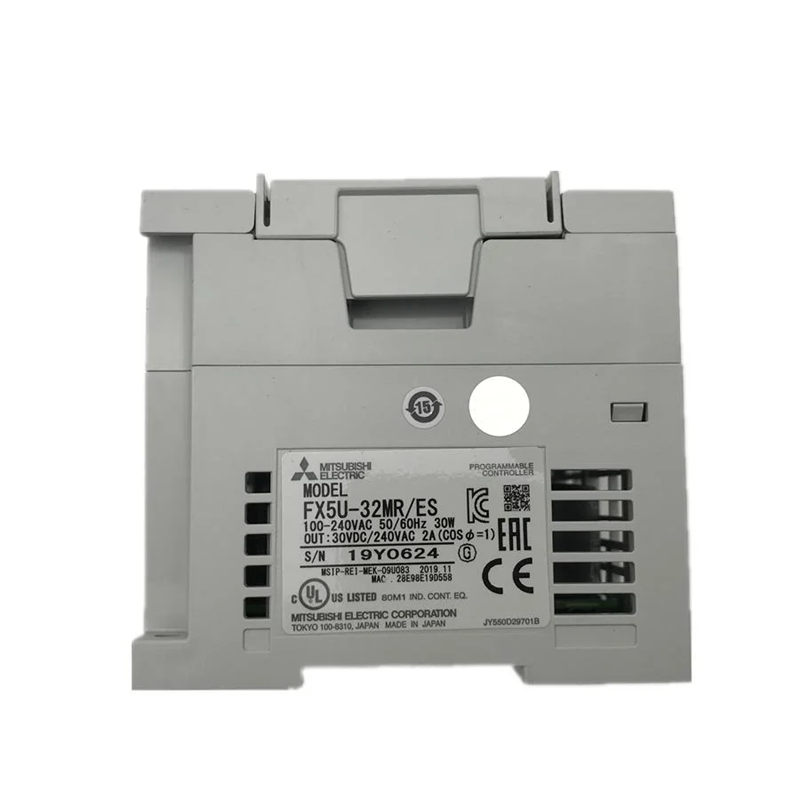

Mitsubishi PLC FX series module FX5U-32MT / ES Programmable Logic Controller
Specifications
• Compact production based on state-of-the-art technology
• Compatible with FX3U series modules
• Module support Multiple to expand functions (analog communication, pulse generator, I / O, ...)
• Comes with 8 high-speed input channels and 4 high-speed output channels
• 2 analog inputs with 1 analog output
• Location management Axis 4 comes with
• Supports SD Card memory card, 4GB memory slot
• Supports RS232, RS422 and RS485 communication expansion board
• Ethernet port for easy connection Comes with RS485
• Analog input, high speed pulse input
• Relay output allows switching load current up to 2A
• Easy-to-use GX Works3 programming
• Switching communication module can be connected directly to PLC

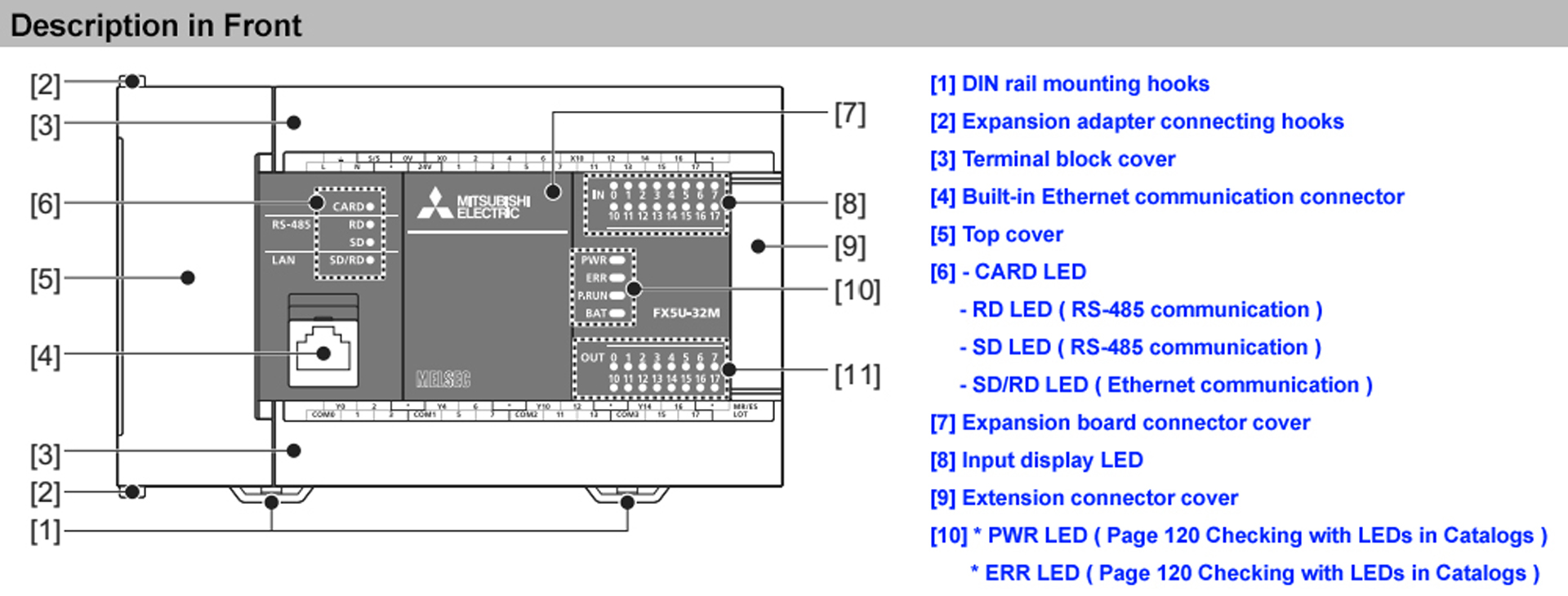

• LED status input / output
status High durability, stable operation, good management ability

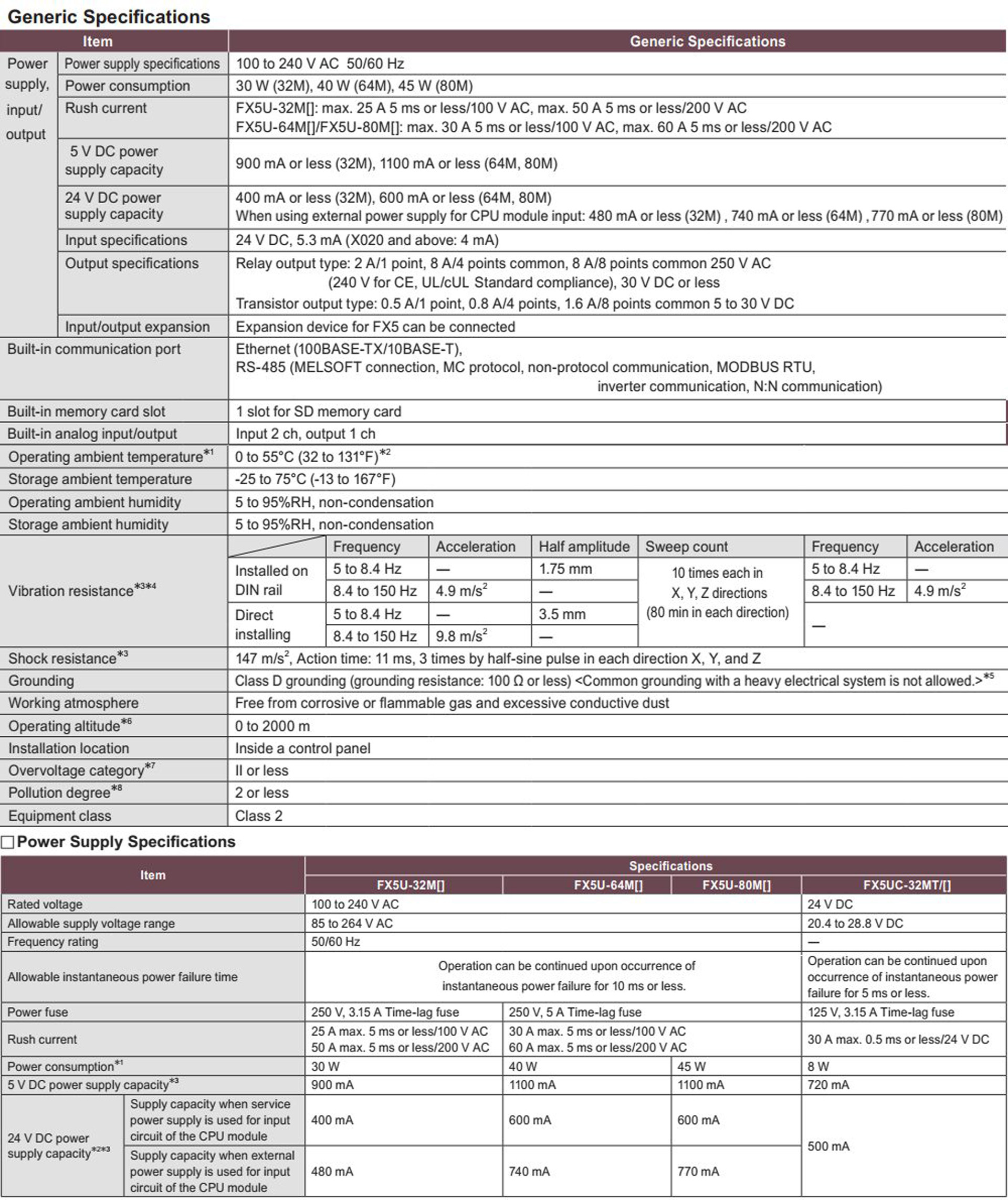

Description
| Power Supply (V) | 100 ~ 240V AC - 50 / 60Hz |
| Total I / O Connections | 32 Digital I / O |
| Input | 16 out, Type Sink / Source |
| Output number | 16 in, Transistor (Sink) type |
| Protection level | IP10 |
| Connection | RS-485, Ethernet (100BASE-TX / 10BASE-T) |
| Power consumption(W) | 30 |
| Program memory | 64,000 command steps |
| Storage temperature | -25ºC ~ + 70ºC |
| Atmospheric humidity | 5 ~ 95% RH (neutral) |

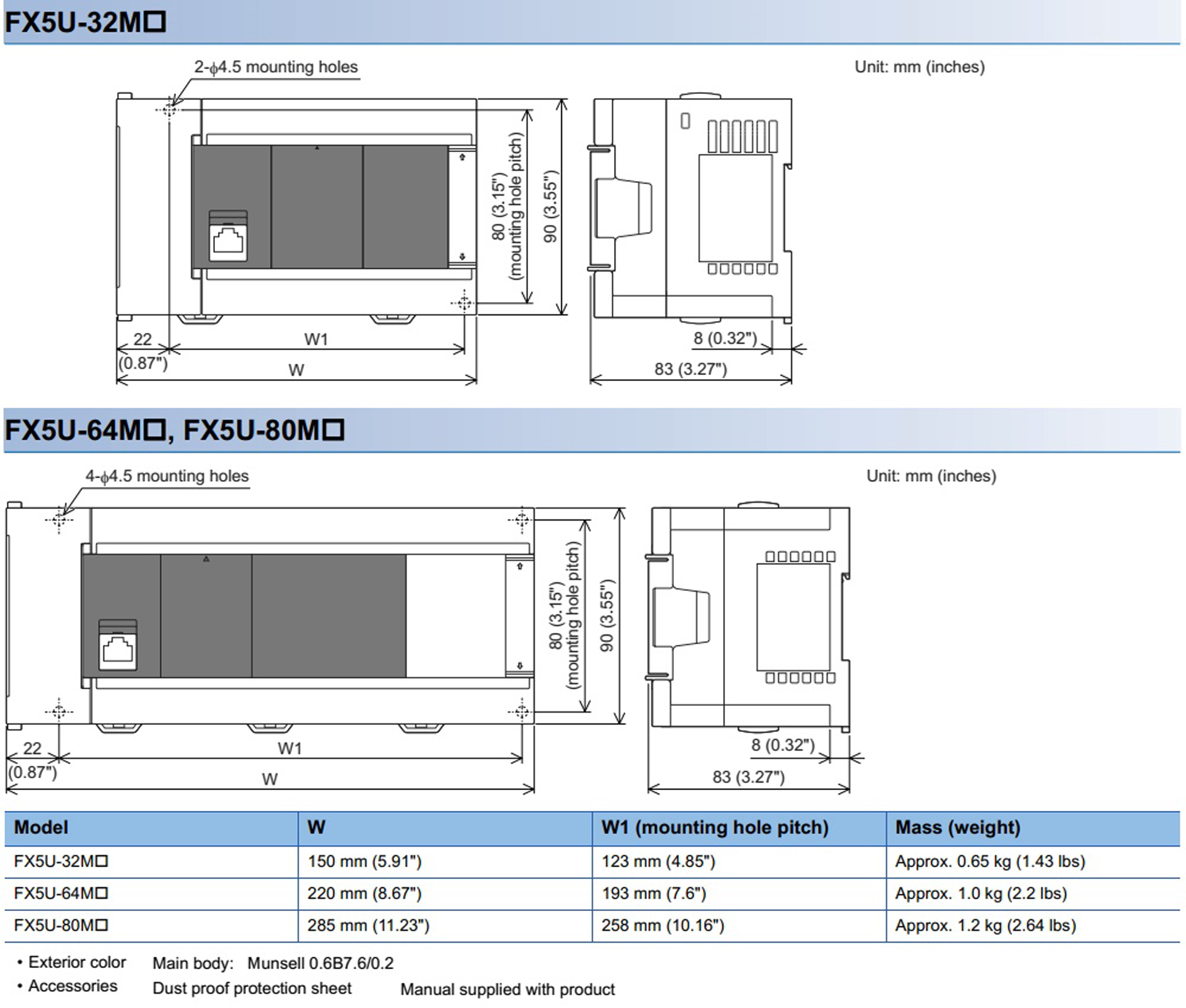

| Dimensions (W x H x D) in mm | 150 x 90 x 83 （0.65kg） |
| Installation type | DIN Rail |
Application
• Reliable output output suitable for ON / OFF control Required 1A ~ 2A
• Widely applied in controllers of industrial systems from simple to complex
• Widely used in textiles, packaging, plastic cases, food ... electronics, medical machinery, precision machinery manufacturing machinery…
