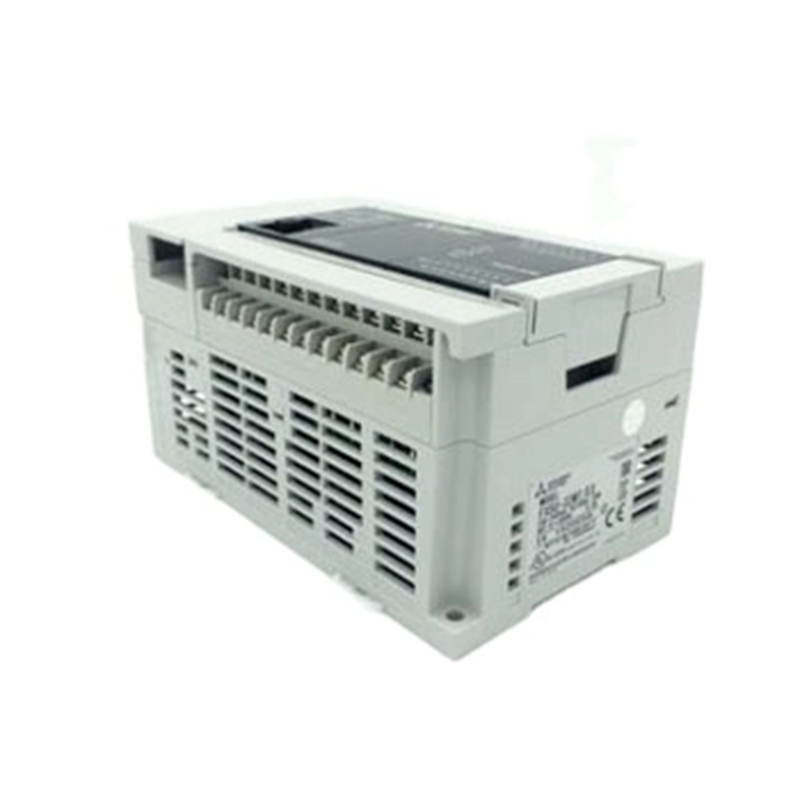

New In Stock Mitsubishi PLC High Functionality Model FX Series Module FX3U-32MR/ES-A

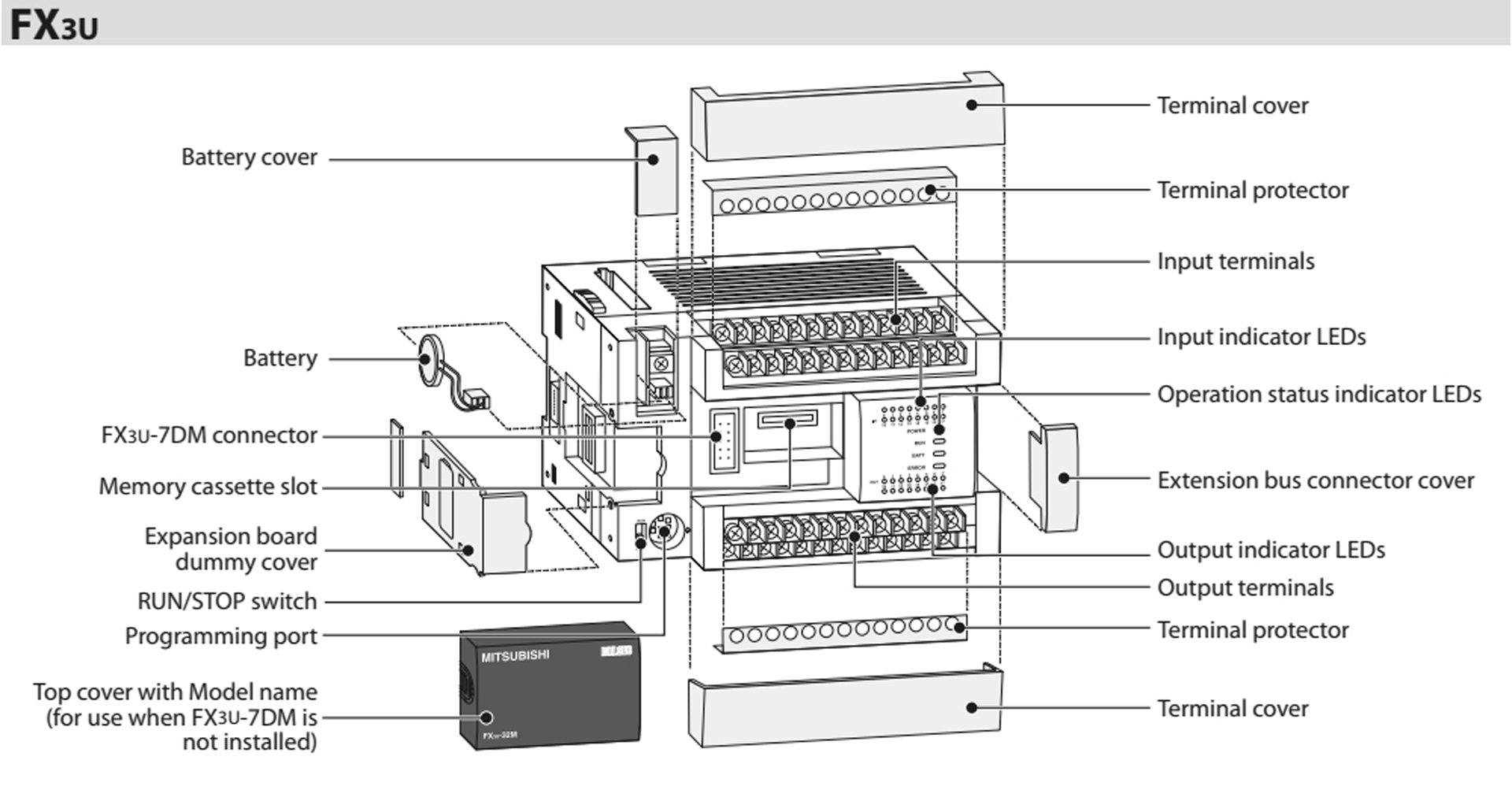

Features & Benefits
Rich features and flexible system configuration in a compact size.

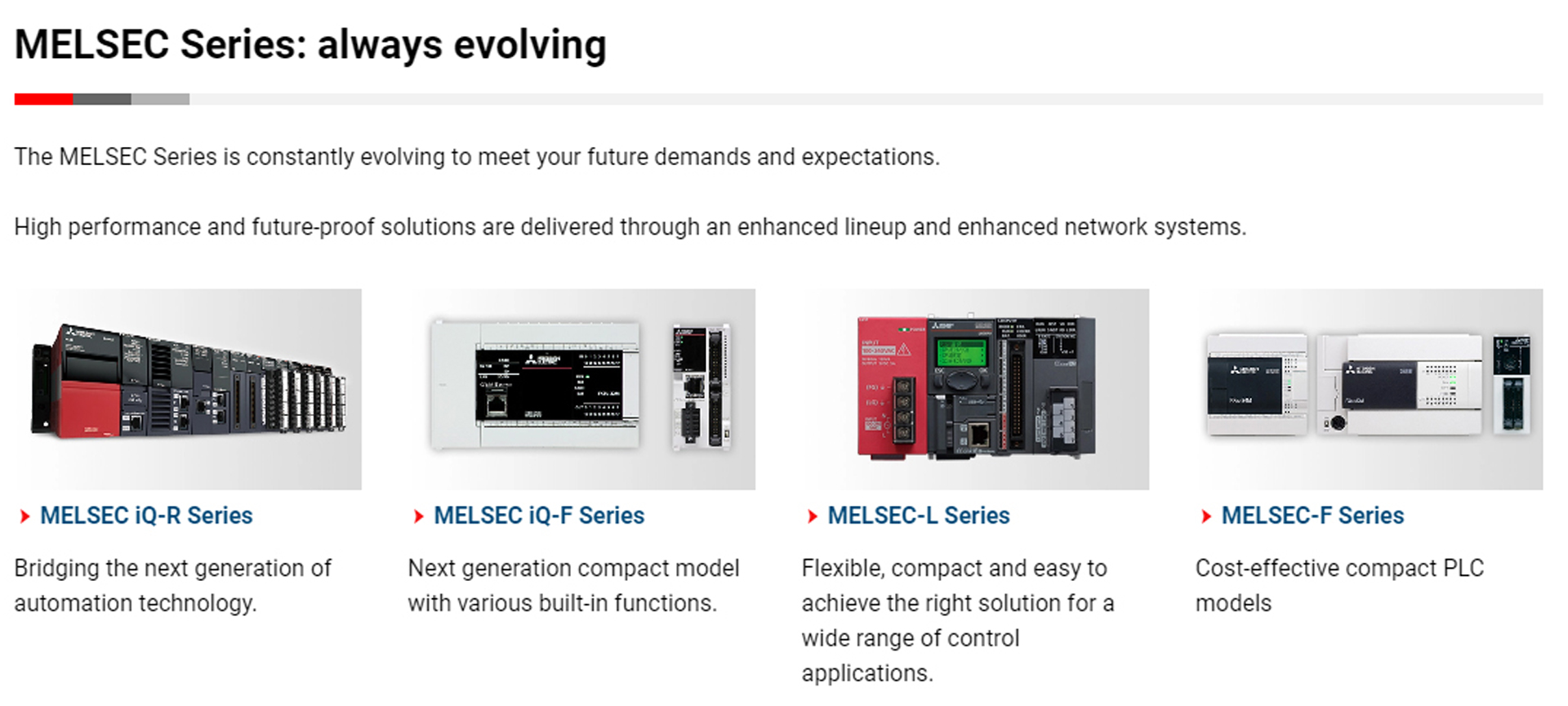

The MELSEC-F series PLC incorporates power supply, CPU, and I/Os into a single compact unit.
Meets the needs of a variety of user applications with options for I/O, analog, positioning, and open network expansion.
Specifications
High functionality model (FX3U/FX3UC)
Faster, friendlier. Realize high expand ability and high functionality.
From high speed control to network support and even logging is possible.
FX3 series flagship model FX3U and connector type FX3UC: 2 models are available.
Standard model (FX3G/FX3GC)
More advanced control for automation and networking.
Equipped with functions required for standard controls, and fit for various purposes.
Compact sized with the same performance, FX3GC is also available.
Basic model (FX3S)
Easy introduction to machine automation.
Simple functions and economical price in one package.
A basic micro PLC with expand ability for analog and communication functions.
FX series I/O extension devices are divided into "extension blocks" and "powered extension units".
"Powered extension units" have built-in power supply and also extend I/O at the same time."Extension blocks" adjust the I/O of the main unit or powered extension units in 8 point or 16 point units.
Description
High speed counter block/adapter
| Model (Number of channels) | Type | Highest response frequency | Hardware comparison output function | 2-phase counter edge count function | Applicable FX PLC | ||||
| FX3S | FX3G | FX3U | FX3GC | FX3UC | |||||
| FX2N-1HC (1ch) | 1-phase 1-count | Max. 50 kHz | ○ | - | × | × | ○ Max. 8 units | × | *2*3 ○ Max. 8 units |
| 1-phase 2-count | Max. 50 kHz | ||||||||
| 2-phase 2-count | 1 edge count: Max. 50 kHz 2 edge count: Max. 25 kHz 4 edge count: Max. 12.5 kHz | ○ | |||||||
| FX3U-2HC (2ch) | 1-phase 1-count | Max. 200 kHz | ○ | - | × | × | ○ Max. 8 units | × | *2 ○ Max. 4 units |
| 1-phase 2-count | Max. 200 kHz | ||||||||
| 2-phase 2-count | 1 edge count: Max. 200 kHz 2 edge count: Max. 100 kHz 4 edge count: Max. 50 kHz | ○ | |||||||
| FX2NC-1HC (1ch) | 1-phase 1-count | Max. 50 kHz | ○ | - | × | × | × | × | *3 ○ Max. 8 units |
| 1-phase 2-count | Max. 50 kHz | ||||||||
| 2-phase 2-count | 1 edge count: Max. 50 kHz 2 edge count: Max. 25 kHz 4 edge count: Max. 12.5 kHz | ○ | |||||||
| FX3U-4HSX-ADP (4ch) | 1-phase 1-count | Max. 200 kHz | × | ○ | × | × | *1 ○ Max. 2 units | × | × |
| 1-phase 2-count | Max. 200 kHz | ||||||||
| 2-phase 2-count | 1 edge count: Max. 100 kHz 4 edge count: Max. 100 kHz | ||||||||
*1: When used together with analog or communication adapters, function expansion board is required.
*2: When connecting to FX3UC, FX2NC-CNV-IF or FX3UC-1PS-5V is required.
*3: FX3UC-32MT-LT(-2): 7 units. FX3UC-**MT/D,FX3UC-**MT/DSS,FX3UC-16MR/D(S)-T: 8 units.

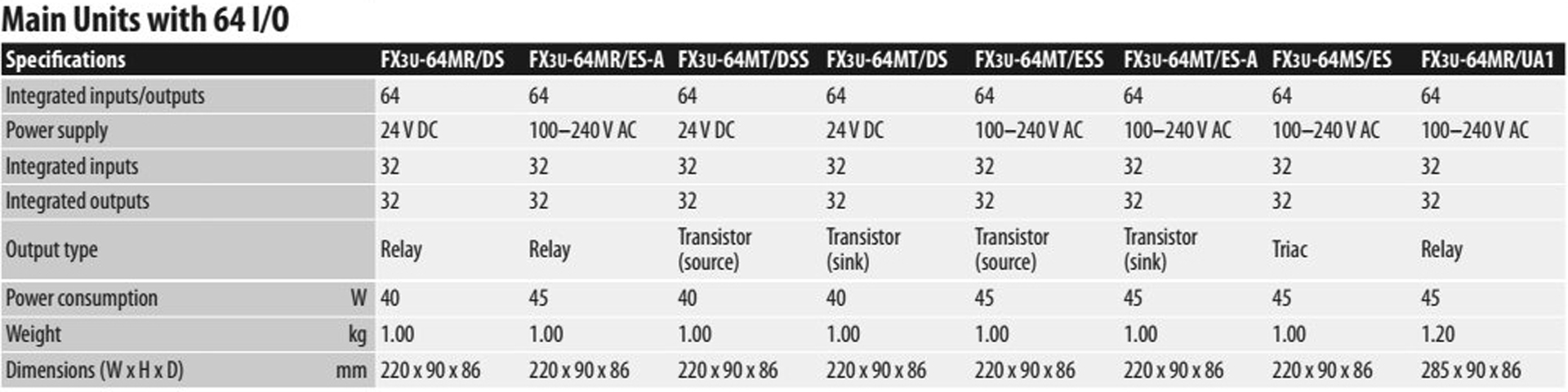

| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | RAM |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 384 |
| Power Consumption (W) | 35 |

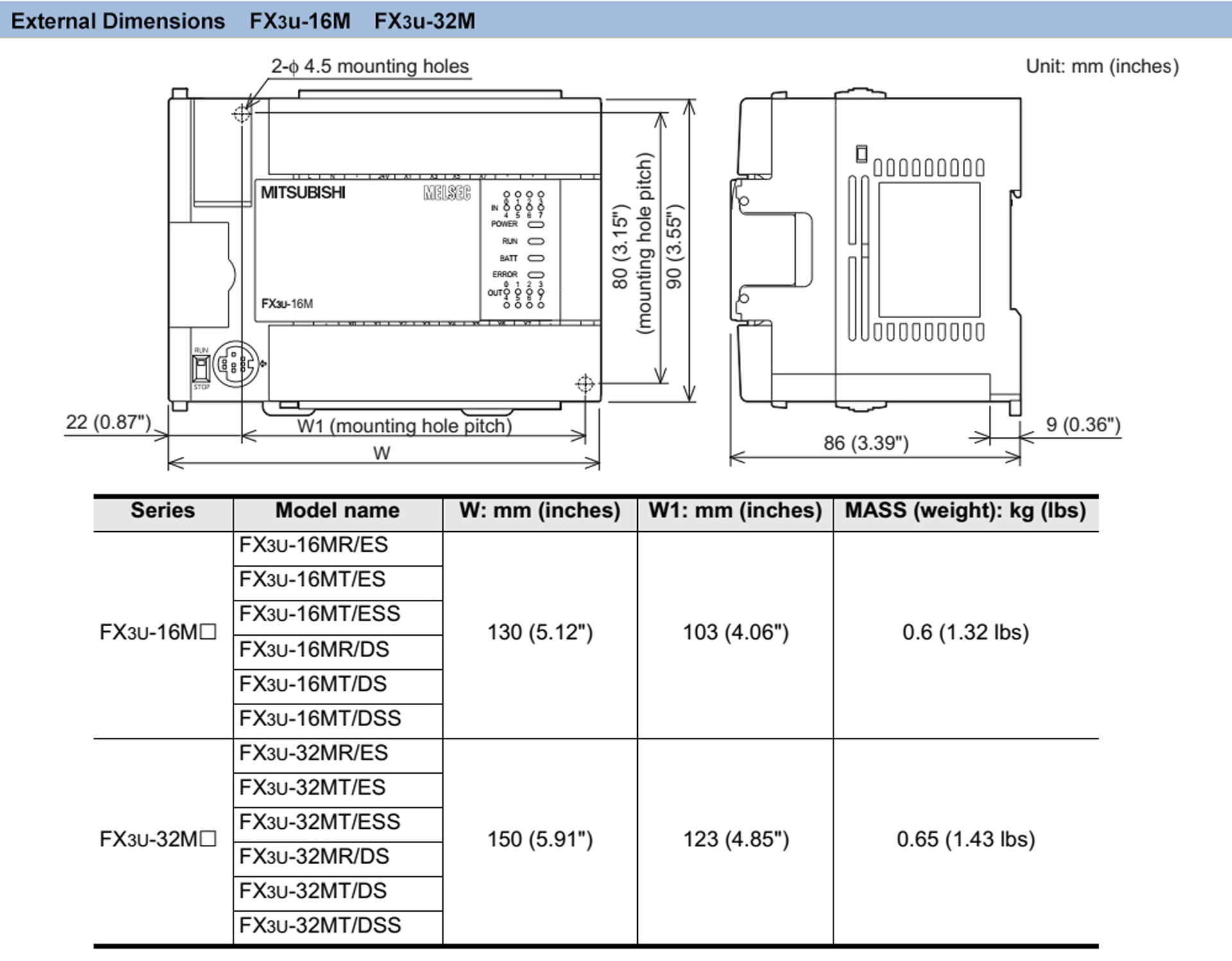

| Dimensions (W x H x D) in mm | 150*90*86 （0.65kg） |
| Protection Class | IP10 |
Applications
• Transmitter output suitable for ON / OFF control devices Required 1A ~ 2A
• Use Widely used in controllers of industrial systems from simple to complex
• Widely used in textiles, plastic packaging, food ...
• Automated systems in medicine, electronics, mechanics, machinery ...
Multi-sector applications: packaging, waste treatment, pumps, transmitters
