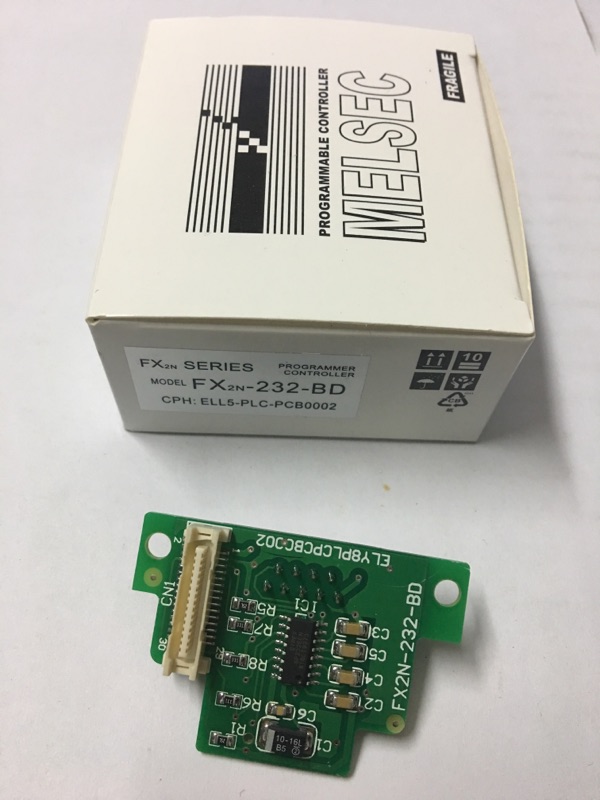

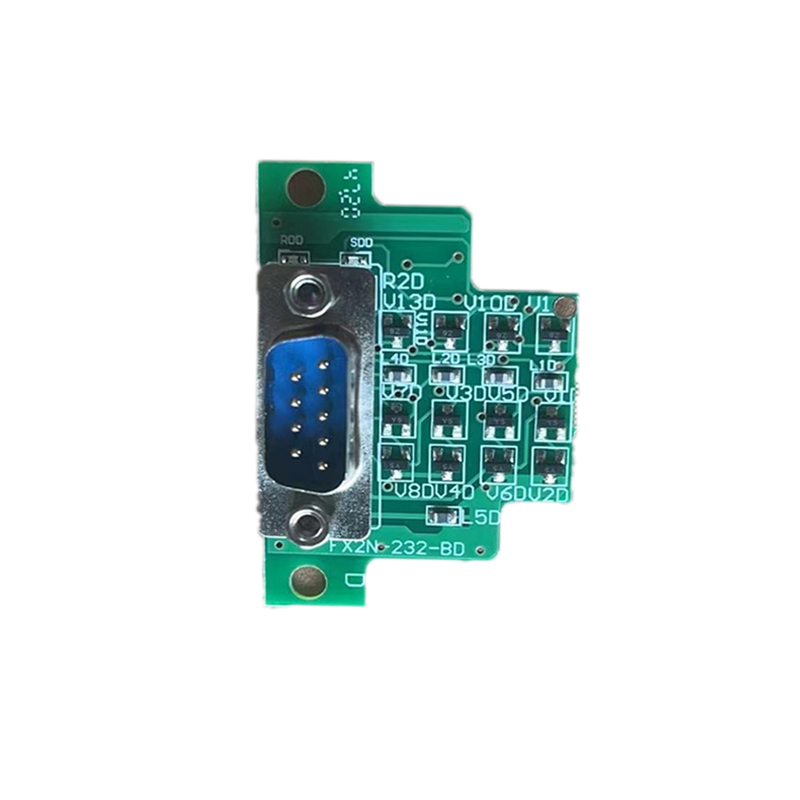

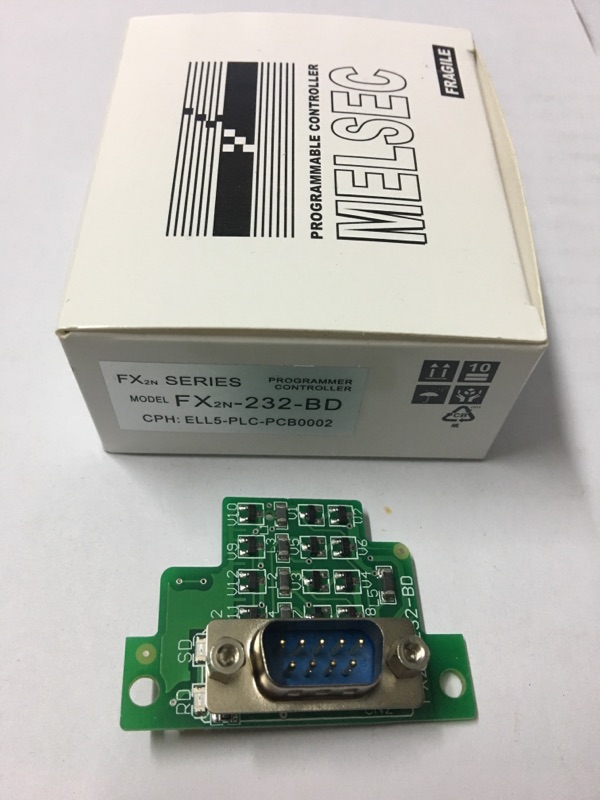

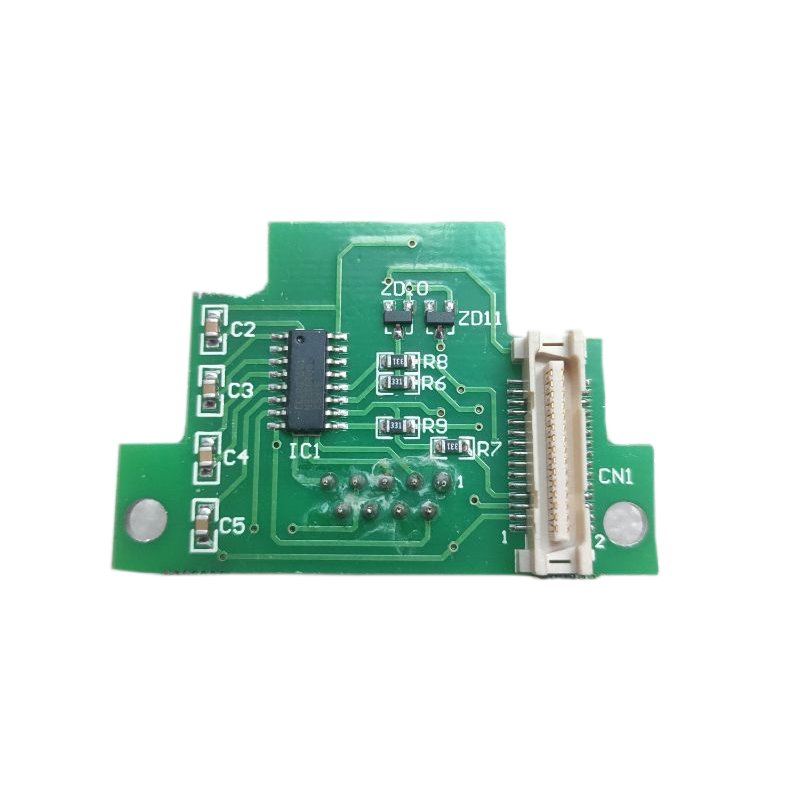

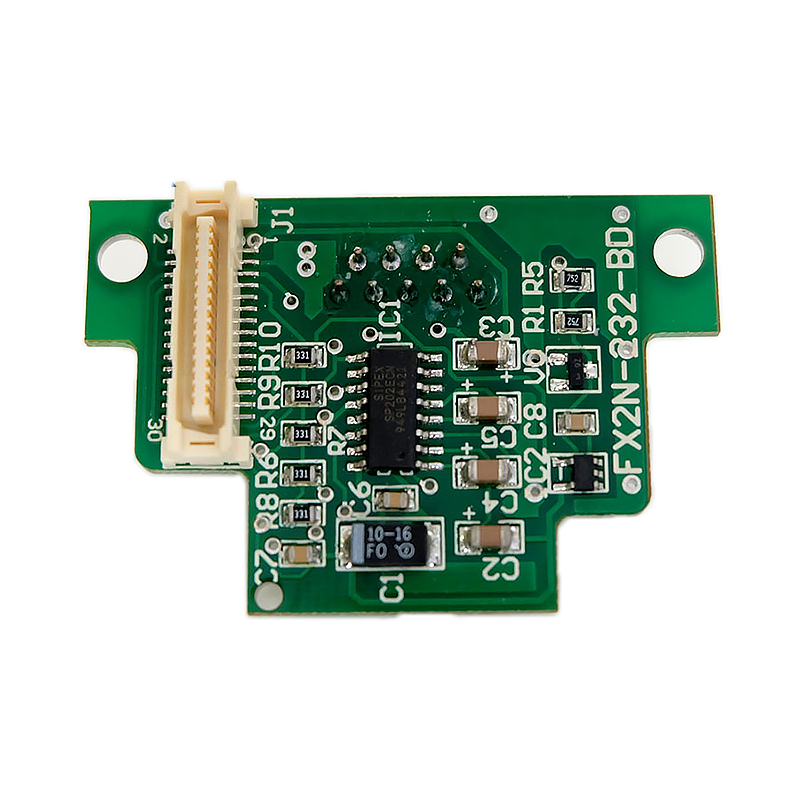

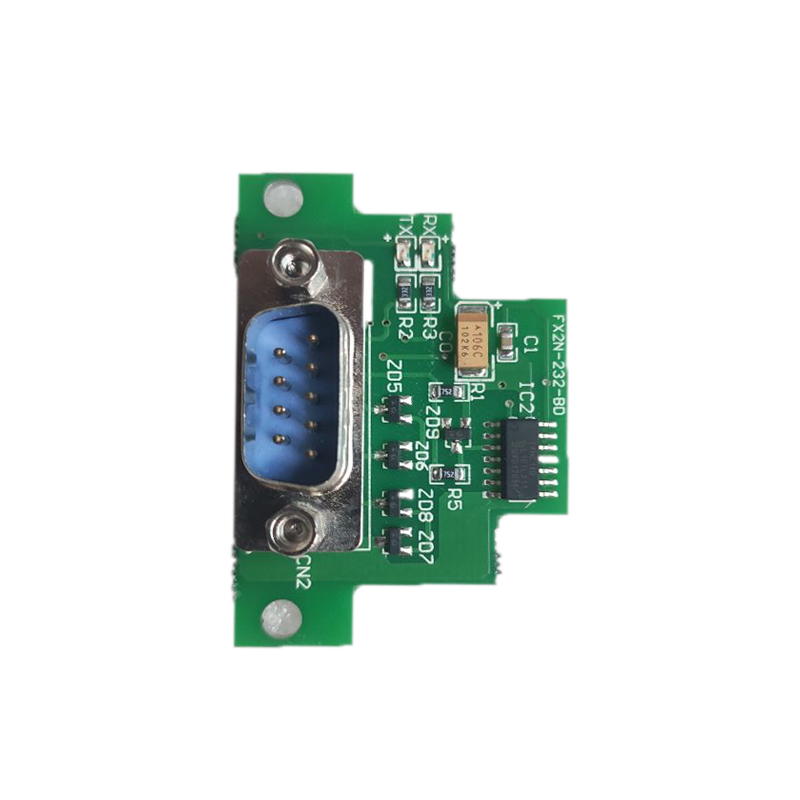

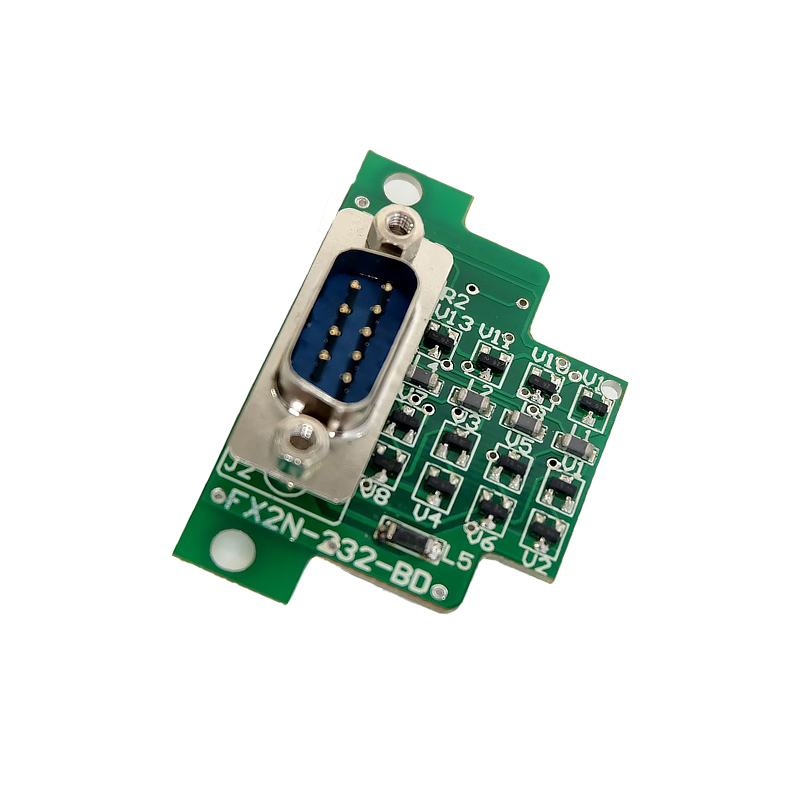

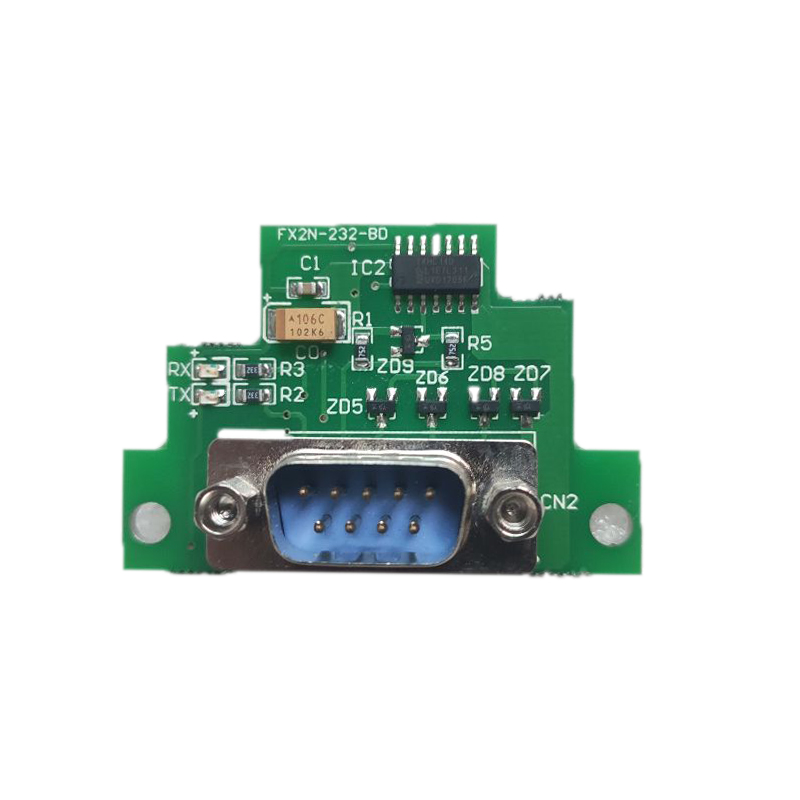

PLC FX2n Series Module FX2N-232-BD PLC Programming Control Module
Standards
* Meets EN, CE, UL / cUL quality standards
* Mitsubishi brand (Made in Japan)
* Product: FX2N
* Response time: 0.55 ~ 1.0 μs
* Fast pulse: 2 feet max pulse 100khz
* Program memory: 8,000 command steps
* Software Interface: Computer, HMI
* Programming:
* GX Developer V8.0 and 8.91
* GX Similator V7
* GX Work 2 + 3 full
* Programming languages: Ladder, Instruction, SFC
* Connection: RS-422, RS485 / RS232 (tr qua qua qua board mở rộng)
* Power consumption: 35W
* Process heat margin: 0ºC ~ 55ºC
* Storage temperature: -20ºC ~ + 70ºC
* Atmospheric humidity: 35 ~ 85% RH (neutral)
Description
| Power Supply (V) | 100 / 230V AC power 12-24V DC (power supply) |
| Total I / O Connections | 60 Digital I / O |
| Input | 36 out, Sink / Source type, 24V power inside |
| Output number | 24 in, Transistor type |
| Response time | 0.55 ~ 1.0 μs |
| Connection | RS-422, RS485 / RS232 |
| Power consumption(W) | 35 |
| Process heat margin | 0ºC ~ 55ºC |
| Storage temperature | -20ºC ~ + 70ºC |
| Atmospheric humidity | 35 ~ 85% RH (neutral) |
| Dimensions (W x H x D) in mm | 175 x 90 x 75 （0.8kg） |
| Protection Class | IP20 |
Applications

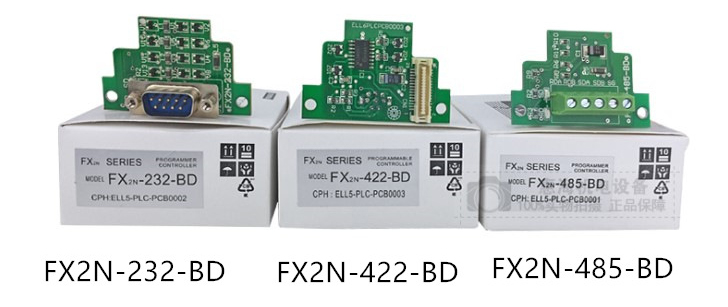

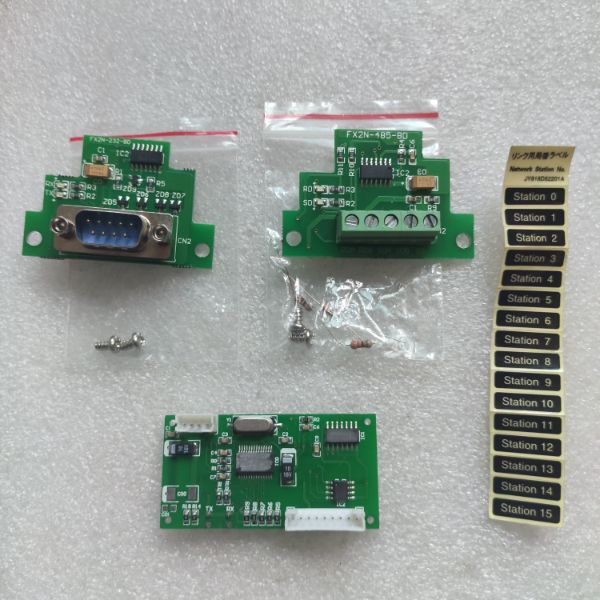

The special function communication boards related to the FX2N series include: FX2N-232-BD (RS-232 communication board), FX2N-422-BD (RS-422 communication board), FX2N-485-BD (RS-485 communication board), FX2N-CNV-BD (adapter connected expansion card), FX2N-CNV-BC (FX2N function expansion board), FX2N-8AV-BD (8-channel potentiometer expansion card), etc.
• Suitable for applications in the wood processing industry, product packaging ...
• Implementing machine management, machinery, environmental management systems
• Software for a small number of I / O requirements
