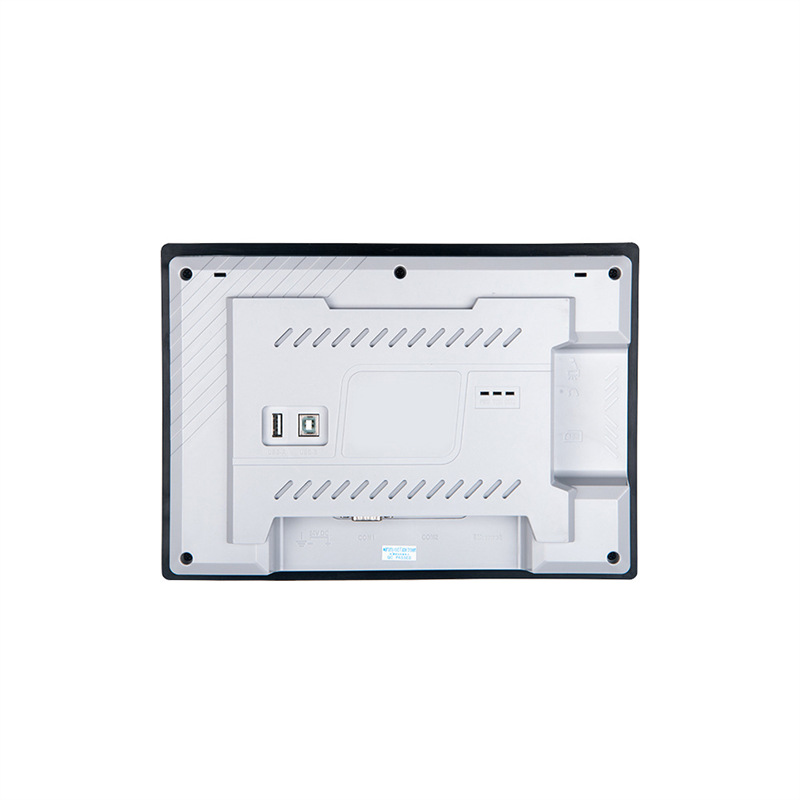

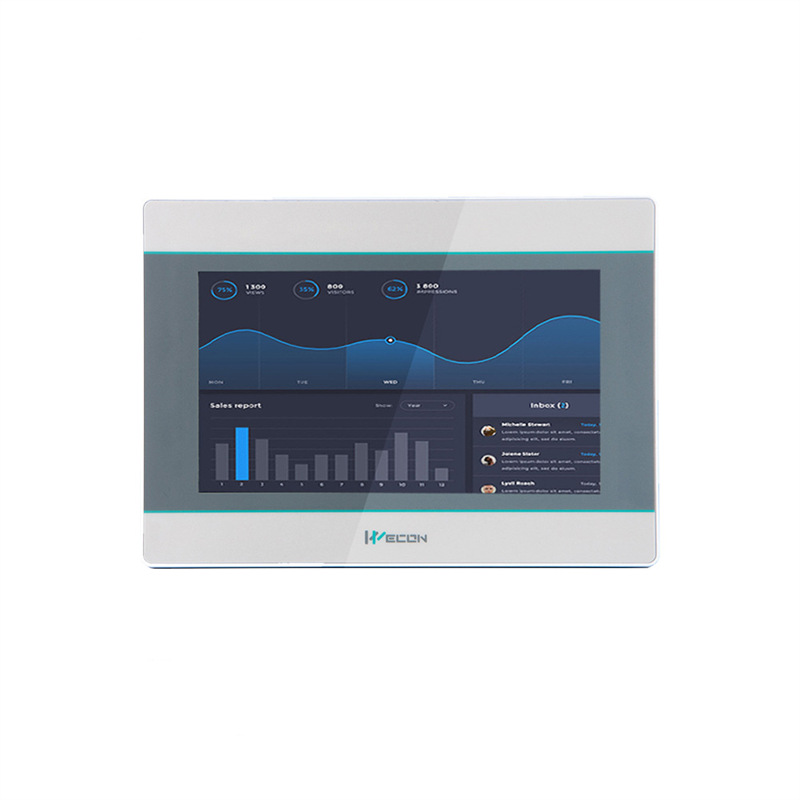

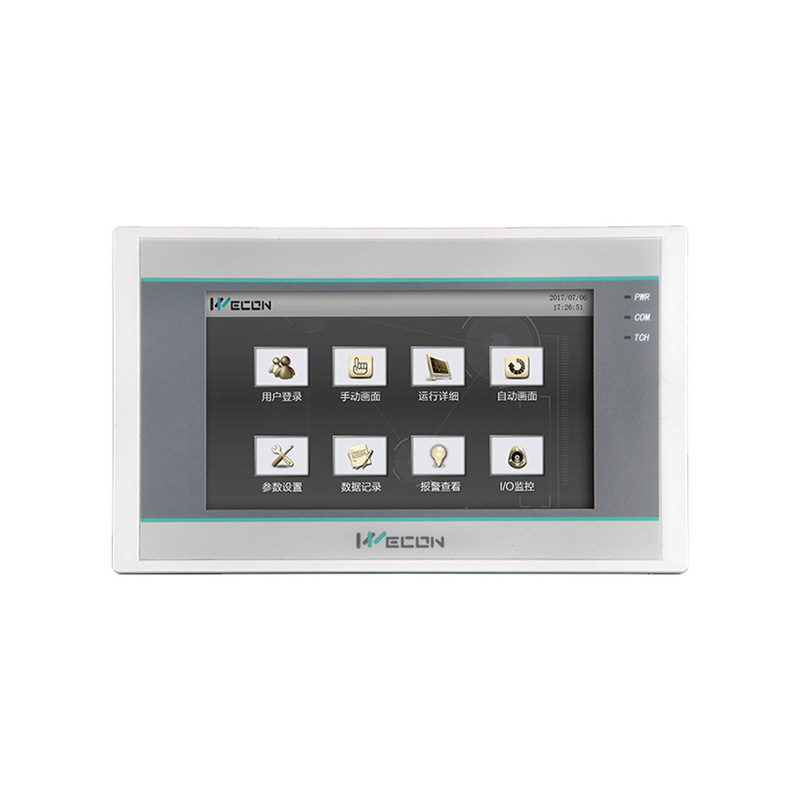

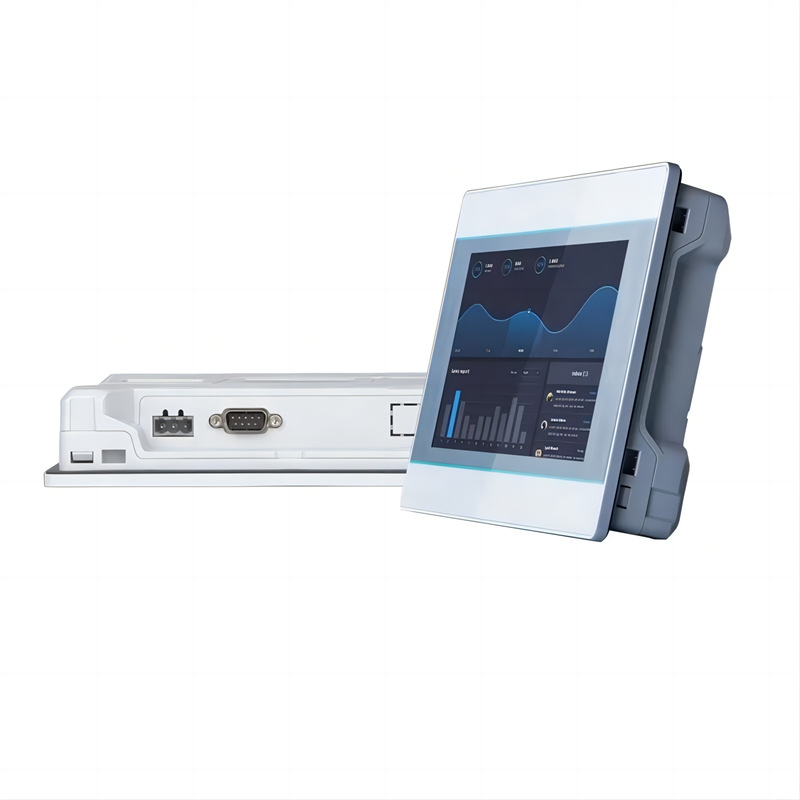

WECON HMI touch screen PI3070ie 7-inch USB host human-machine interface series
Specifications
Using Cortex A35 CPU, resolution: 800 x 480
Improved screen switching and update speed
Library capacity upgrade, software security upgrade, communication stability upgrade
Use PI Studio configuration software to configure
Multi-core processor with super smooth and fast speed.Power on in 6 seconds.Screen switching in 100ms.300+ popular PLC brands&series protocols supported.50+ screen parts supported.LUA script supported.
WECON HMI， As the first generation product of WECON Technology, it has gained widespread market recognition due to its advantages such as economy, practicality, fast response speed, high configuration, and multiple choices
Description
|
Model |
PI3070ie |
PI3102ie |
|
|
item |
Specifications |
||
|
CPU |
Cortex A35 |
||
|
Touch Screen |
Resistive |
||
|
Display |
Screen Size |
7 inch |
10.2 inch |
|
Resolution |
800*480 |
1024*600 |
|
|
Brightness |
250 cd/m² |
250 cd/m² |
|
|
Backlight Type |
LED |
||
|
Backlight Life Time |
50,000 Hours |
||
|
Storage |
Flash |
128MB |
|
|
RAM |
64MB |
||
|
SD Card |
NA |
||
|

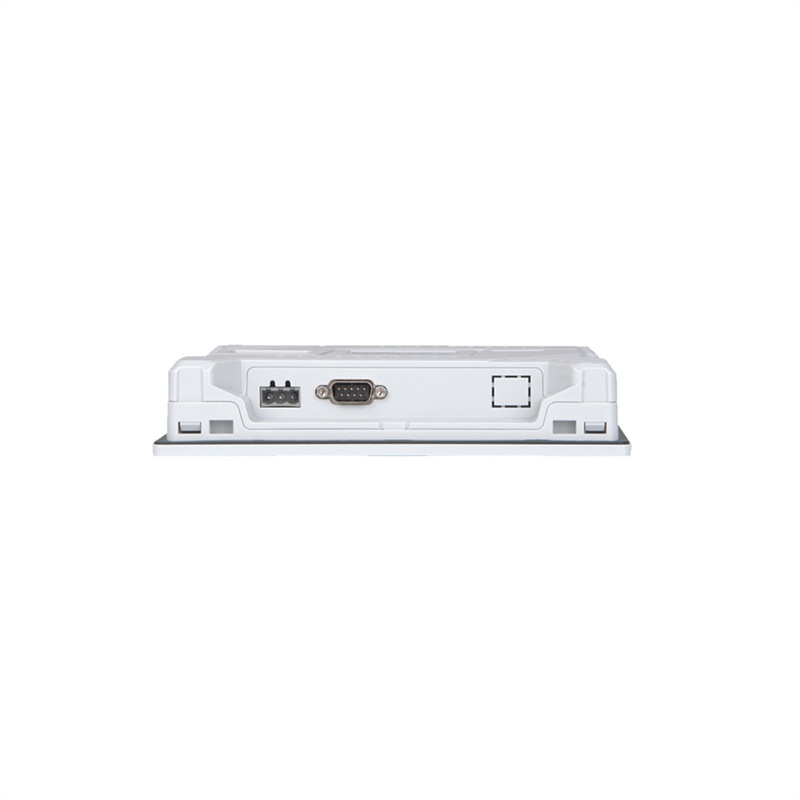

Ports |
USB |
USB Hos t: USB 2.0 x1:USB Client: USB 2.0 x1 |
|
|
Serial Port |
Type 1: COM1(RS232),COM1(RS485) Type 2: COM1(RS232), COM1(RS422) |
||
|
Ethernet |
N/A |
||
|
Permanent Calendar |
Built-in |
||
Applications
The main products independently developed by Wecon include man-machine Interface (HMI), Programmable logic controller (PLC), V-NET and V-IEC, intelligent gateway product V-BOX, servo drive, motion control system, visual control system, etc. Products are widely used in equipment manufacturing, agricultural breeding, energy conservation, environmental protection, new energy and other fields, to provide customers with special control, industrial Internet of things solutions
